MXXA-036-3D-45A0full overlay/45, H=0 | - | - | - | - | - | |

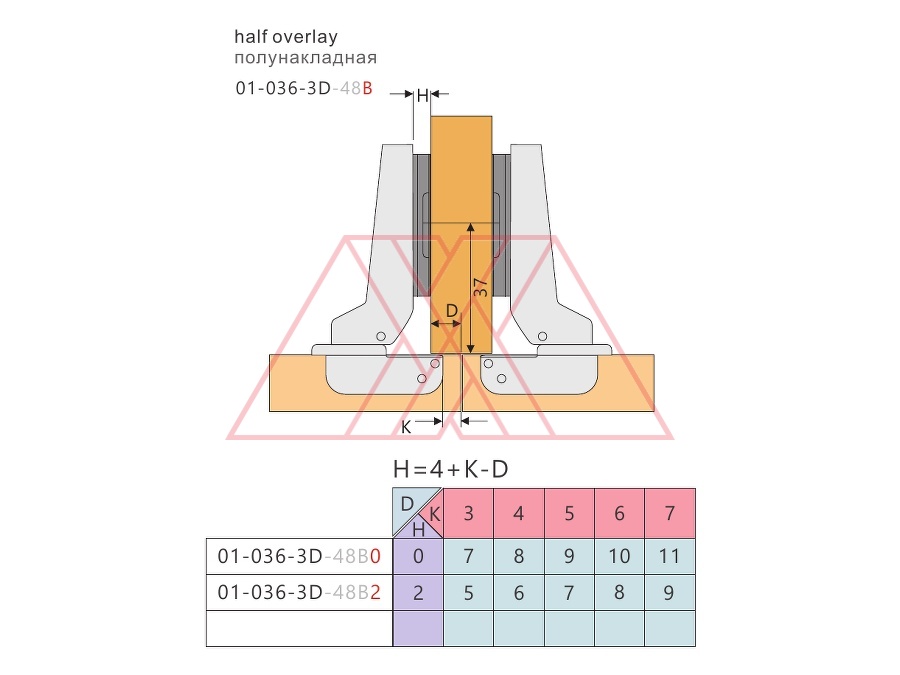

MXXA-036-3D-48B0half overlay/48, H=0
Montaje: media superposición
Agujeros: 48
Ángulo de apertura: 105 °
Peso: 108 gr-110
| media superposición | 48 | 105 ° | 108 gr-110
| - | |
MXXA-036-3D-52A0d40, full overlay/52, H=0 | - | - | - | - | - | |
MXXA-036-3D-48C2-sbcinsert/48/H2, screw+body+cup covers | - | - | - | - | - | |
MXXA-036-3D-48C2-EUinsert/48/H2,euroscrew | - | - | - | - | - | |
MXXA-036-3D-48C2insert/48/H2
Montaje: inserción
Agujeros: 48
Ángulo de apertura: 105 °
Altura de placa: H=2
| inserción | 48 | 105 ° | - | H=2
| |
MXXA-036-3D-48C0-TWinsert/48, H=0, two way | - | - | - | - | - | |

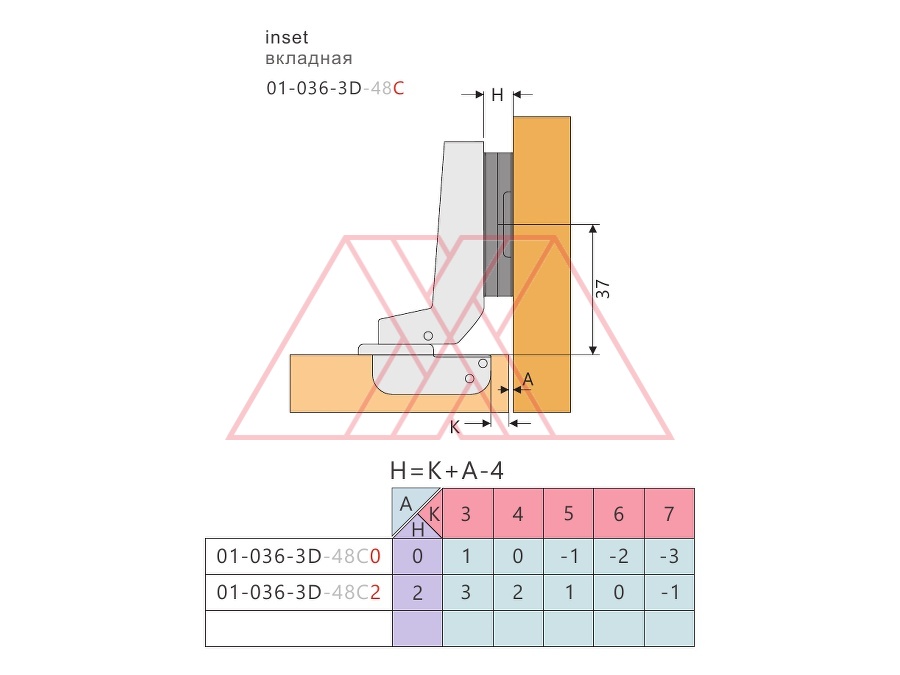

MXXA-036-3D-48C0insert/48, H=0
Montaje: inserción
Agujeros: 48
Ángulo de apertura: 105 °
Peso: 108 gr-110
| inserción | 48 | 105 ° | 108 gr-110
| - | |
MXXA-036-3D-48B2-sbchalf overlay/48/H2, screw+body+cup covers | - | - | - | - | - | |
MXXA-036-3D-48B2-EUhalf overlay/48/H2,euroscrew | - | - | - | - | - | |
MXXA-036-3D-48B2half overlay/48/H2
Montaje: media superposición
Agujeros: 48
Ángulo de apertura: 105 °
Altura de placa: H=2
| media superposición | 48 | 105 ° | - | H=2
| |
MXXA-036-3D-48B0-TWhalf overlay/48, H=0, two way | - | - | - | - | - | |
MXXA-036-3D-48B0-EUhalf overlay/48, H=0,euroscrew | - | - | - | - | - | |
MXXA-036-3D-48A-M8D5full overlay/48 | - | - | - | - | - | |

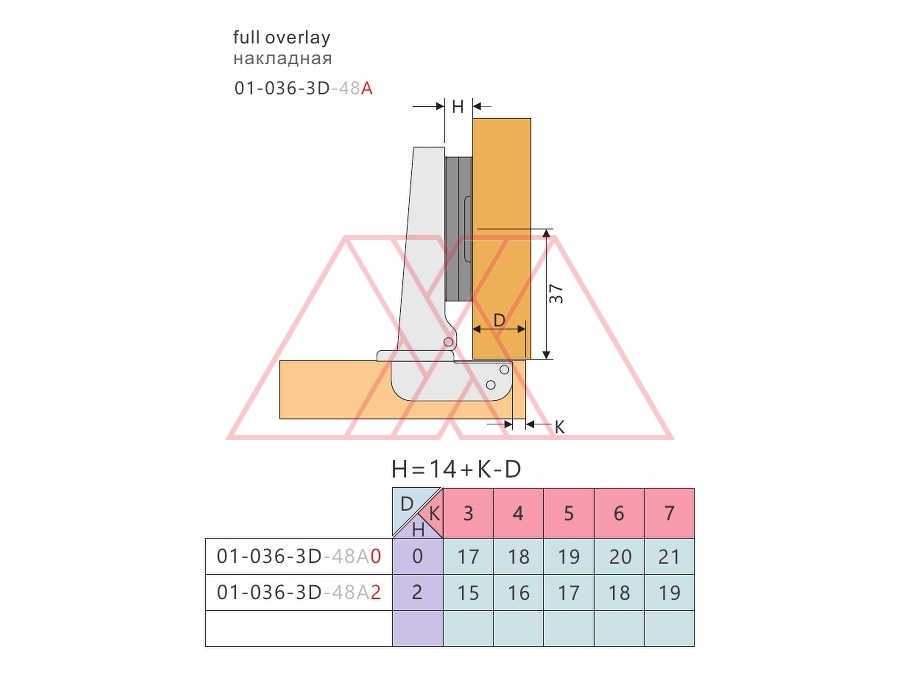

MXXA-036-3D-48A0full overlay/48, H=0
Montaje: superposición completa
Agujeros: 48
Ángulo de apertura: 105 °
Peso: 108 gr-110
| superposición completa | 48 | 105 ° | 108 gr-110
| - | |
MXXA-036-3D-48A-body48/hinge body | - | - | - | - | - | |
MXXA-036-3D-48A4full overlay/48/H4
Altura de placa: H=4
| - | - | - | - | H=4
| |
MXXA-036-3D-48A2-TW-sbcfull overlay/48/H2, screw+body+cup covers | - | - | - | - | - | |
MXXA-036-3D-48A2-sbcfull overlay/48/H2, screw+body+cup covers | - | - | - | - | - | |
MXXA-036-3D-48A2-plateH2, 3D plate | - | - | - | - | - | |
MXXA-036-3D-48A2-EUfull overlay/48/H2,euroscrew | - | - | - | - | - | |
MXXA-036-3D-48A2-bcfull overlay/48/H2, body+cup covers | - | - | - | - | - | |
MXXA-036-3D-48A2full overlay/48/H2
Montaje: superposición completa
Agujeros: 48
Ángulo de apertura: 105 °
Altura de placa: H=2
| superposición completa | 48 | 105 ° | - | H=2
| |
MXXA-036-3D-48A0-TWfull overlay/48, two way, H=0
Montaje: superposición completa
Agujeros: 48
Ángulo de apertura: 105 °
Peso: 108 gr-110
| superposición completa | 48 | 105 ° | 108 gr-110
| - | |
MXXA-036-3D-48A0-Sfull overlay/48, H=0 | - | - | - | - | - | |
MXXA-036-3D-48A0-EUfull overlay/48, H=0,euroscrew | - | - | - | - | - | |
MXXA-036-3D-52B0d40, half overlay/52, H=0 | - | - | - | - | - | |
