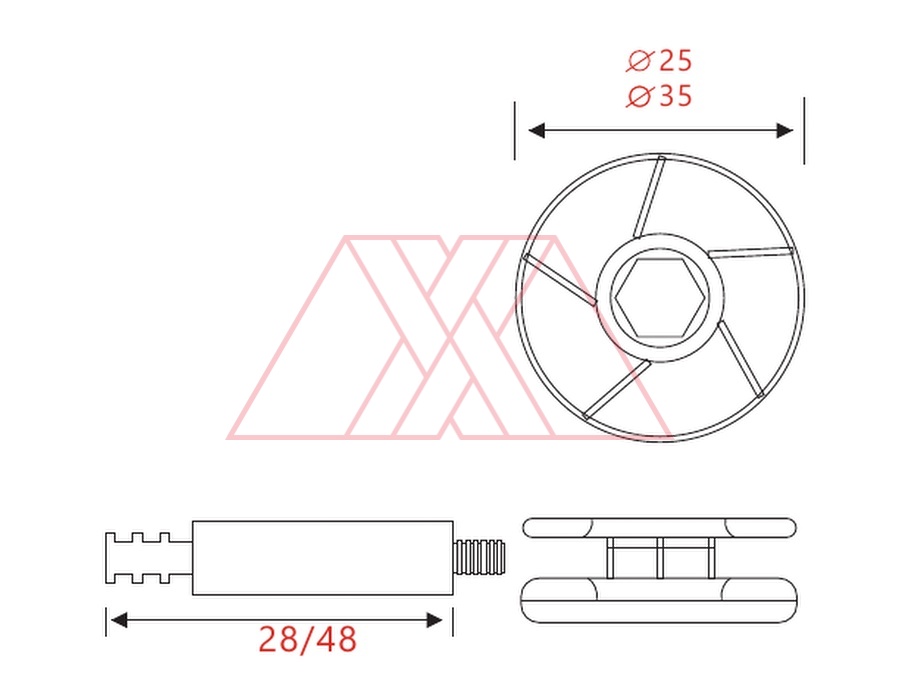

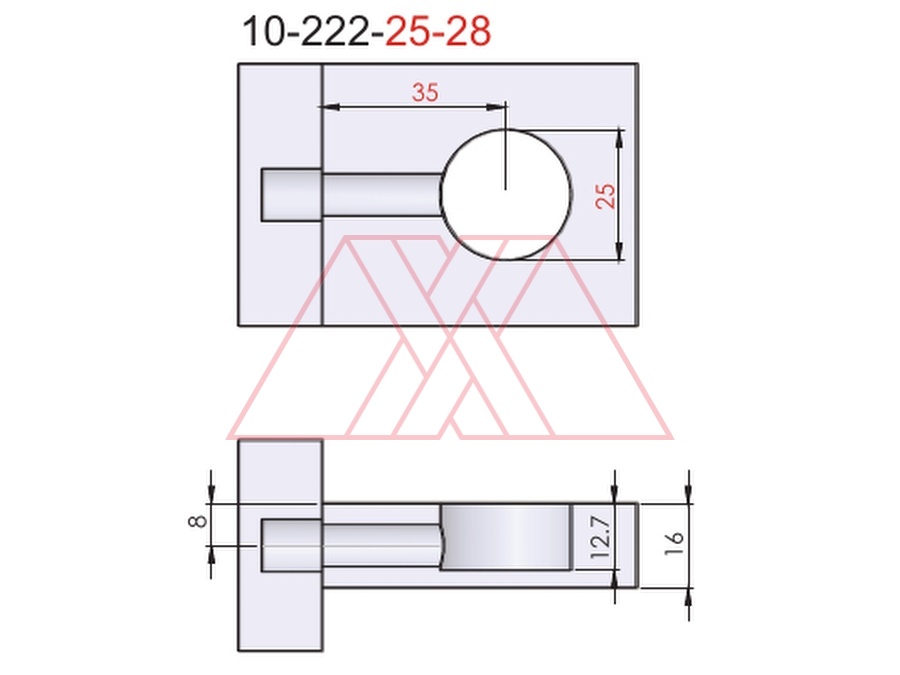

MXXJ-222-25-28D=25, set, L=30
Delme mesafesi (A): 28
Dübel merkezi (x): 8
Çap (D): 25
Delme derinliği (h): 12
Altıgen: 5
Diş: M6
| 28 | 8 | 25 | 12 | 5 | M6
| |

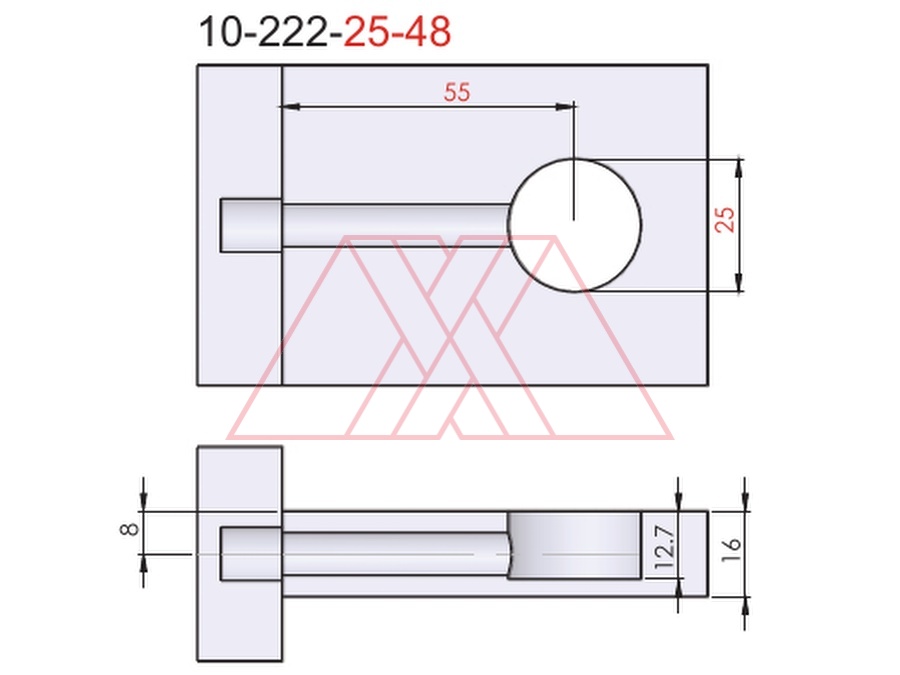

MXXJ-222-25-48-1D=25, L=48,set:1screw+1 head
Delme mesafesi (A): 48
Dübel merkezi (x): 8
Çap (D): 25
Delme derinliği (h): 12
Altıgen: 5
Diş: M8
| 48 | 8 | 25 | 12 | 5 | M8
| |
MXXJ-222-25-48-2D=25, L=48,set:1screw+2 heads | - | - | - | - | - | - | |

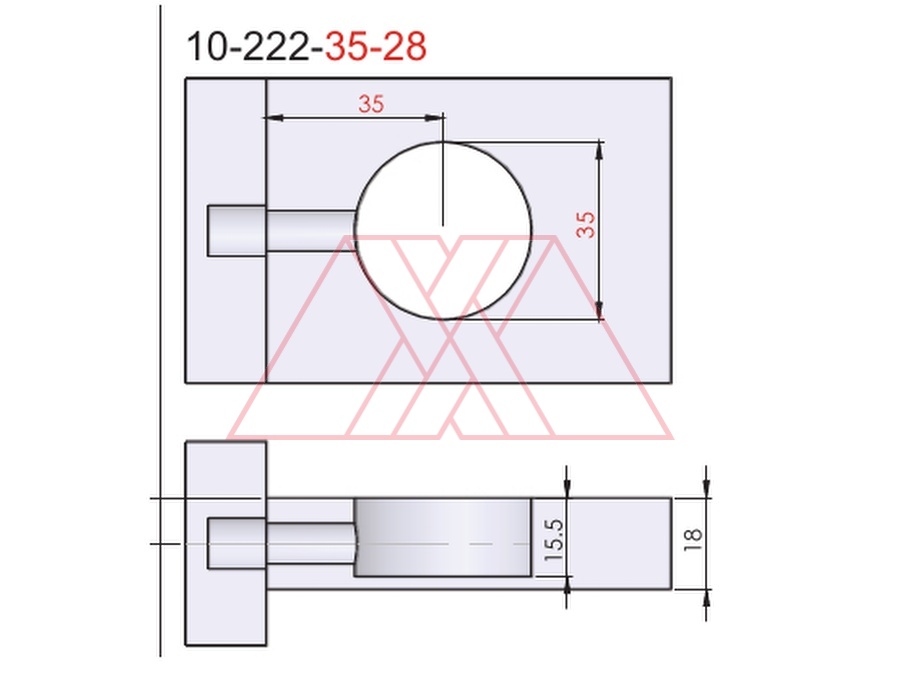

MXXJ-222-35-28D=35, L= 28,set:1screw+1 head
Delme mesafesi (A): 28
Dübel merkezi (x): 9
Çap (D): 35
Delme derinliği (h): 15.5
Altıgen: 6
Diş: M8
| 28 | 9 | 35 | 15.5 | 6 | M8
| |

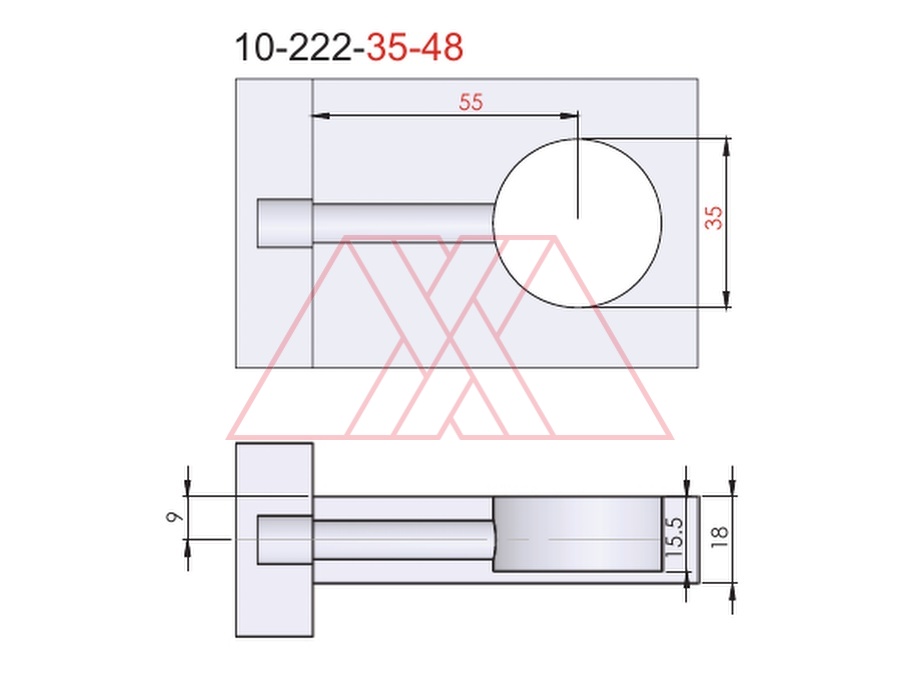

MXXJ-222-35-48D=35, L=48,set:1screw+1 head
Delme mesafesi (A): 48
Dübel merkezi (x): 9
Çap (D): 35
Delme derinliği (h): 15.5
Altıgen: 6
Diş: M8
| 48 | 9 | 35 | 15.5 | 6 | M8
| |
MXXJ-222-pplastic cap | - | - | - | - | - | - | |

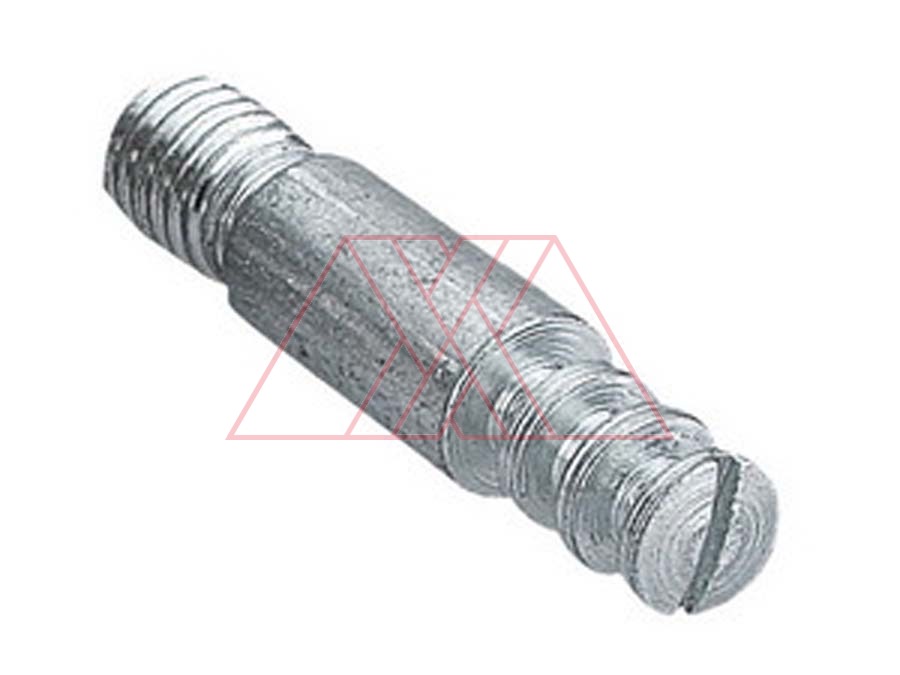

MXXJ-222-s28screw part 28mm | - | - | - | - | - | - | |
MXXJ-222-s48screw part 48mm | - | - | - | - | - | - | |
MXXJ-222-zonly head | - | - | - | - | - | - | |
