Hinge without spring push, slide-on

SKU: MXXA-003 Categories: ,
Variations

MXXA-003-48A0-W

full/48/H0

MXXA-003-48A2-W

full/48/H2

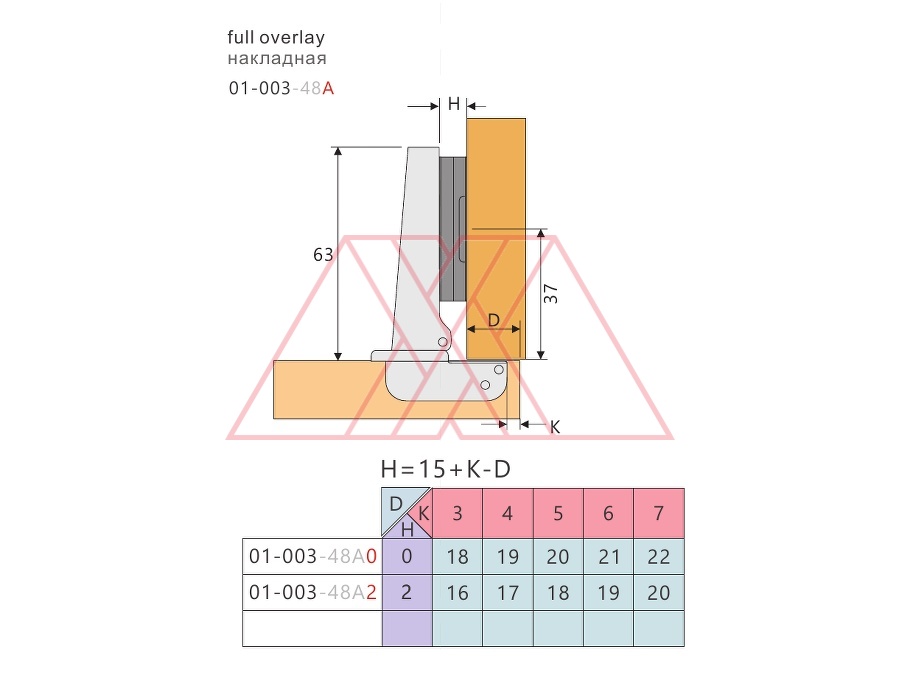

Crank: full overlay
Holes: 48
Plate height: H=2
Spring: w/o spring
Weight: 61 gr± 1

MXXA-003-48B0-W

half/48/H0

MXXA-003-48C0-W

ins/48/H0

MXXA-003-50-48A0-W-x

full /48/H0, 50+/-2g
Crank: full overlay
Plate height: H=0
Spring: w/o spring
Weight: 50 gr± 2
Cap depth: 10.5
Plate type: for chipboard screws

MXXA-003-58-48A0-W-x

full/48/H0, 58+/-2g
Crank: full overlay
Plate height: H=0
Spring: w/o spring
Weight: 58 gr± 2
Cap depth: 11.3
Plate type: for chipboard screws

MXXA-003-58-48B0-W-x

half/48/H0, 58+/-2g

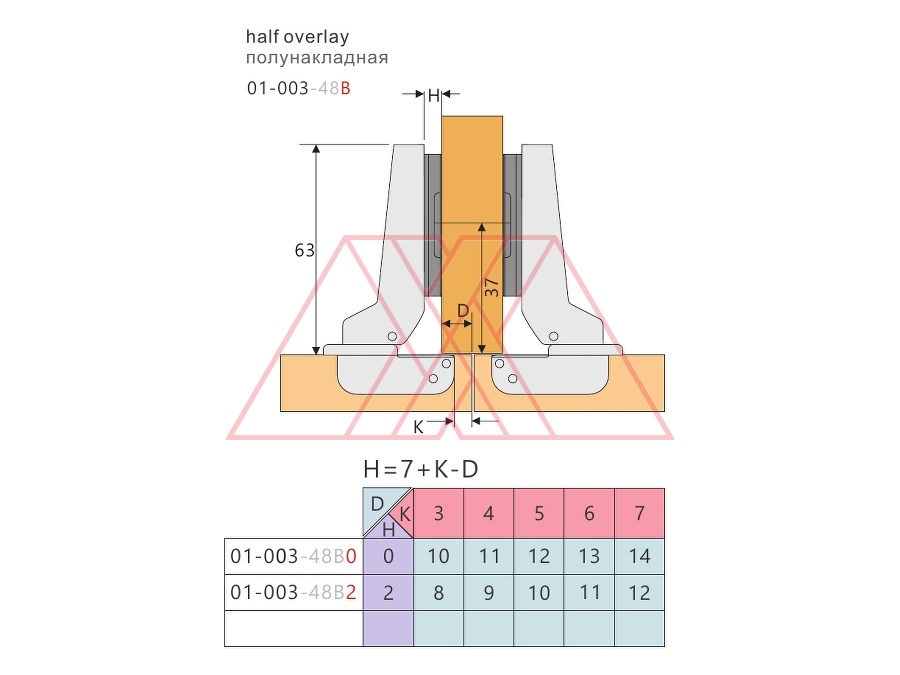

Crank: half overlay
Plate height: H=0
Spring: w/o spring
Weight: 58 gr± 2
Cap depth: 11.5
Plate type: for chipboard screws

MXXA-003-58-48C0-W-x

insert/48/H0, 58+/-2

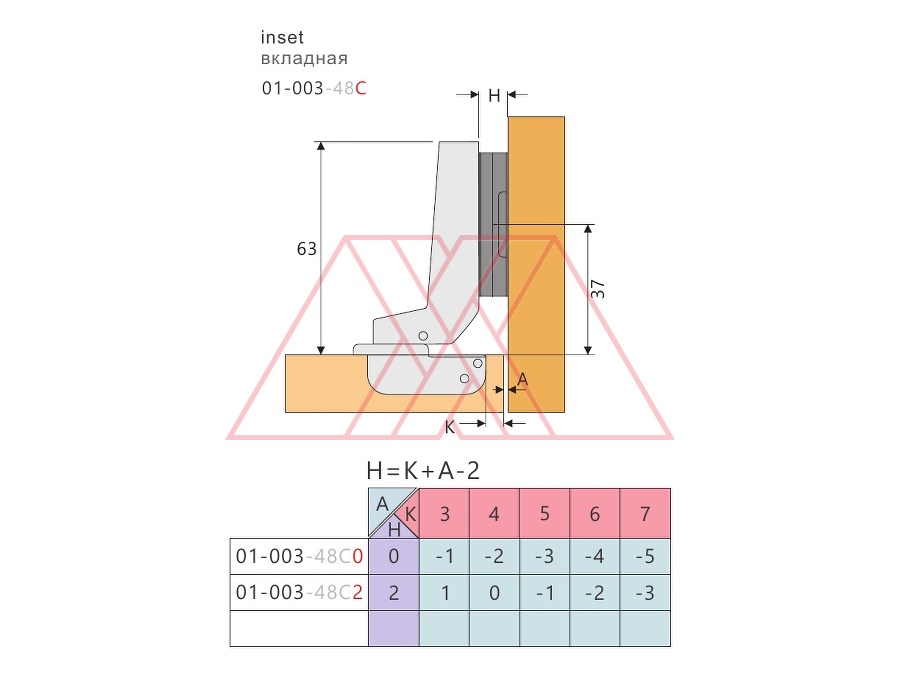

Crank: inset
Plate height: H=0
Spring: w/o spring
Weight: 58 gr± 2
Cap depth: 11.5
Plate type: for chipboard screws

MXXA-003-60-48A2-W-x

full/48/H2, 60+/-2g
