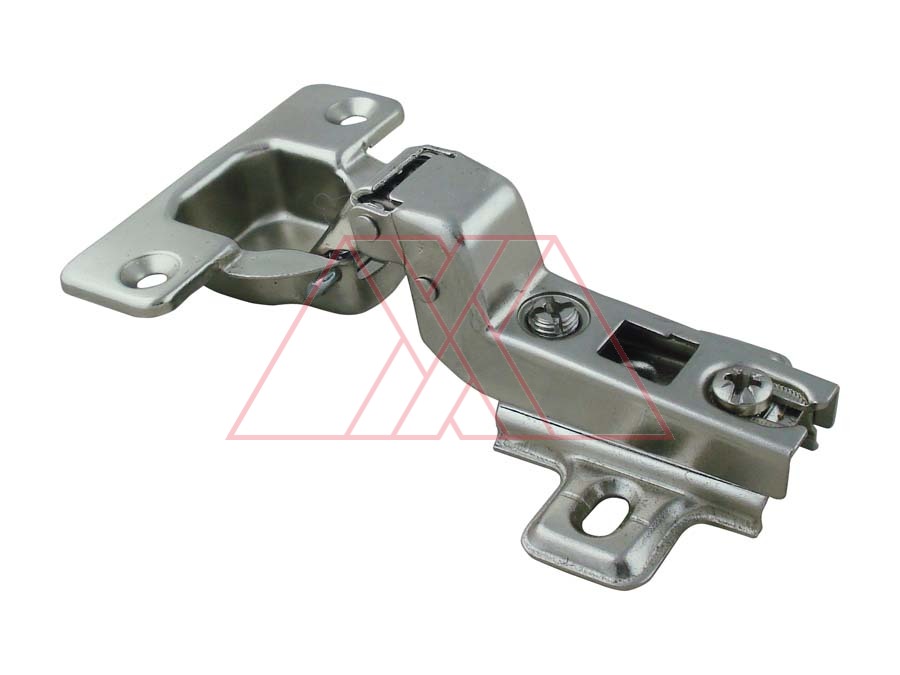

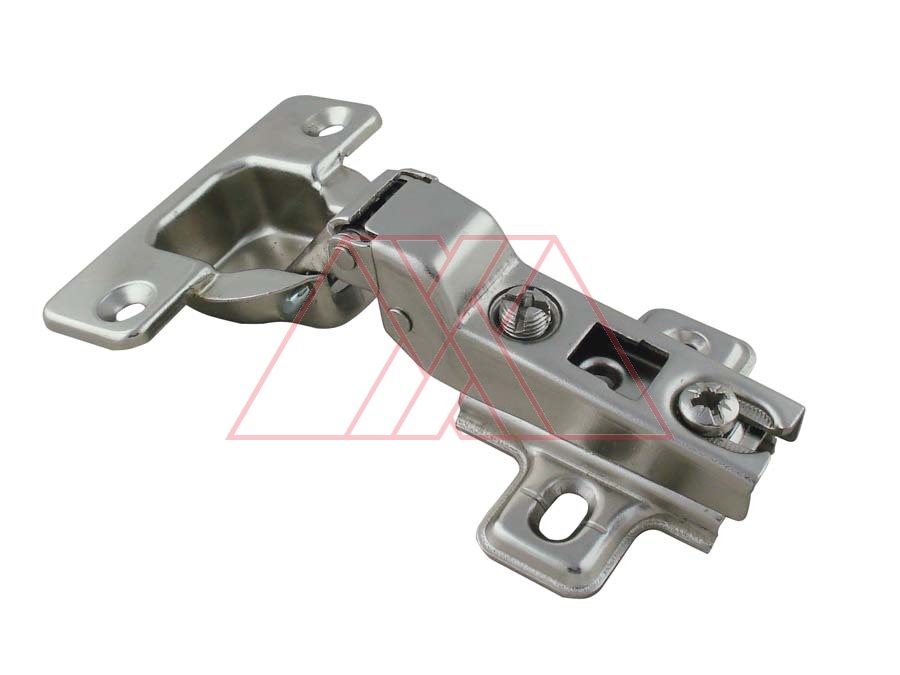

MXXA-000 Furniture hinge, slide-on

Product material: steel
Product finish: nickel plated

SKU: MXXA-000 Categories: 01 - Hinges, for wooden doors

Variations	Crank	Plate height	Plate type	Spring	Weight
MXXA-000-45A2 full overlay/45/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist

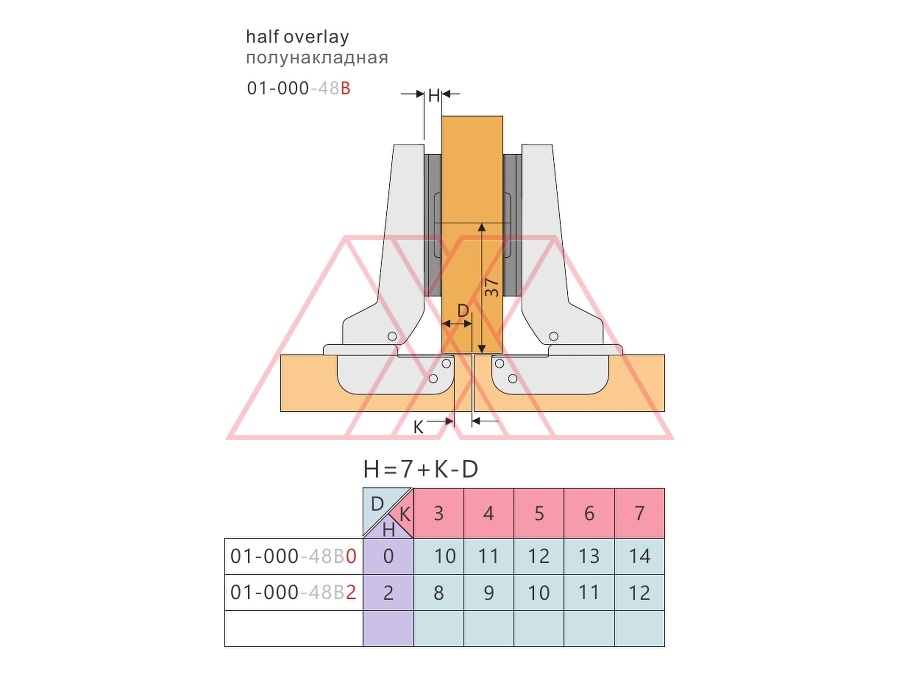

MXXA-000-48B2 half overlay/48/H2 Crank: half overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 61 gr± 1	half overlay	H=2	for chipboard screws	yes	61 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-57-48B2 half/48/H2, 57gr Crank: half overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 58 gr± 1	half overlay	H=2	for chipboard screws	yes	58 gr± 1	Inquiry In Inquirylist In Inquirylist

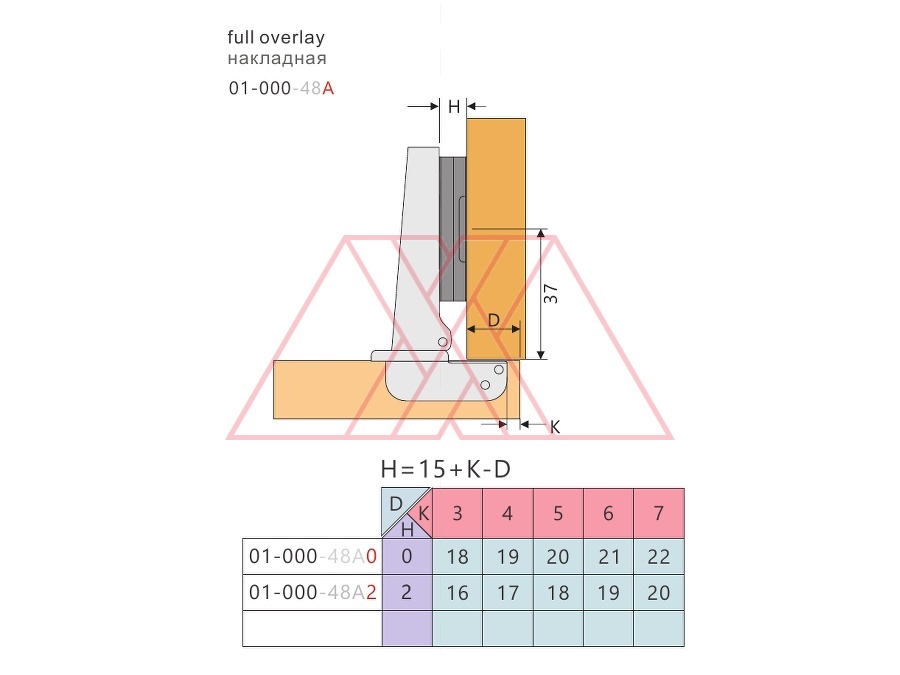

MXXA-000-57-48A2 full/48/H2, 57gr Crank: full overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 58 gr± 1	full overlay	H=2	for chipboard screws	yes	58 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-57-48A0 full/48/H0, 57gr	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist

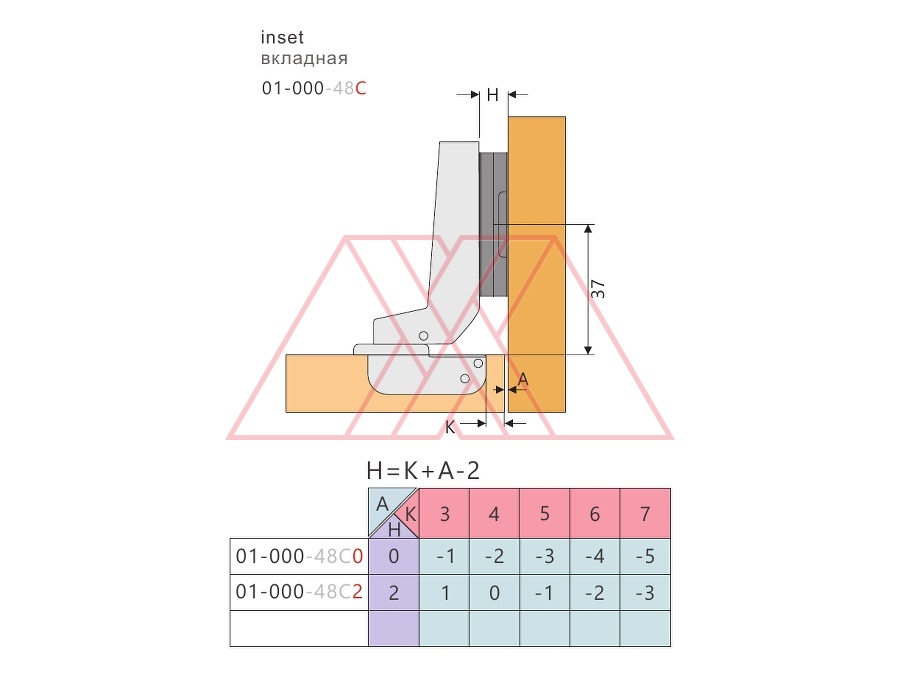

MXXA-000-48C2-EU insert/48/H2/Euroscr Crank: inset Plate height: H=2 Plate type: with euroscrews Spring: yes	inset	H=2	with euroscrews	yes	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-48C2 insert/48/H2 Crank: inset Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 61 gr± 1	inset	H=2	for chipboard screws	yes	61 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-48C0 insert/48/H0 Crank: inset Plate height: H=0 Plate type: for chipboard screws Spring: yes Weight: 61 gr± 1	inset	H=0	for chipboard screws	yes	61 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-48B2-EU half/48/H2/Euroscrew Crank: half overlay Plate height: H=2 Plate type: with euroscrews Spring: yes Weight: 61 gr± 1	half overlay	H=2	with euroscrews	yes	61 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-48B0 half overlay/48/H0 Crank: half overlay Plate height: H=0 Plate type: for chipboard screws Spring: yes Weight: 61 gr± 1	half overlay	H=0	for chipboard screws	yes	61 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-45B2 half overlay/45/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-48A2S full overlay/48/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-48A2F full overlay/48/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-48A2-EU full/48/H2/Euroscrew Crank: full overlay Plate height: H=2 Plate type: with euroscrews Spring: yes	full overlay	H=2	with euroscrews	yes	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-48A2 full overlay/48/H2 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws Weight: 60 gr± 1	full overlay	H=2	for chipboard screws	-	60 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-48A0-EU full/48/H0/Euroscrew	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-48A0 full overlay/48/H0 Crank: full overlay Plate height: H=0 Plate type: for chipboard screws Spring: yes Weight: 60 gr± 1	full overlay	H=0	for chipboard screws	yes	60 gr± 1	Inquiry In Inquirylist In Inquirylist
MXXA-000-45C2 insert/45/H2	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
MXXA-000-57-48C2 insert/48/H2, 57gr Crank: inset Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 58 gr± 1	inset	H=2	for chipboard screws	yes	58 gr± 1	Inquiry In Inquirylist In Inquirylist
