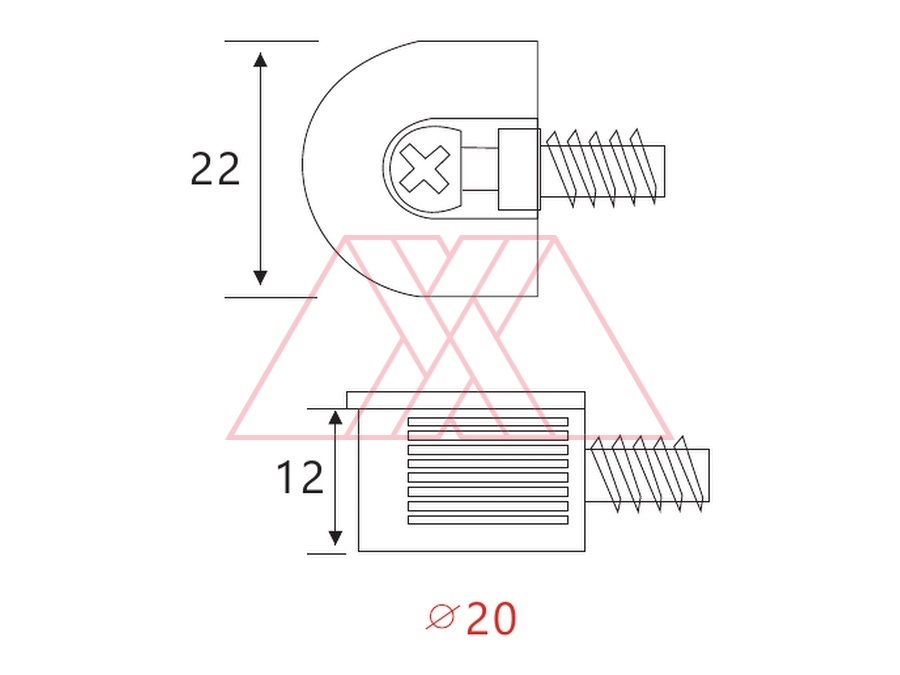

MXXJ-273-088mm

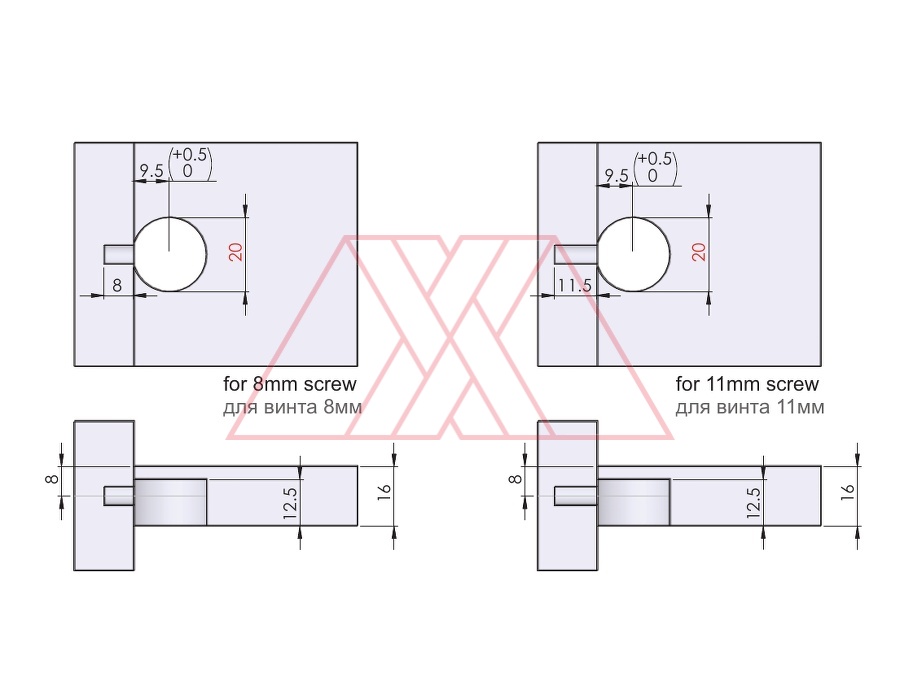

Center of dowel (x): 8
Diameter (D): 20
Drilling depth (h): 12.5
Thread length: 8
| 8 | 20 | 12.5 | 8
| - | |
MXXJ-273-1111mm
Center of dowel (x): 8
Diameter (D): 20
Drilling depth (h): 12.5
Thread length: 11
| 8 | 20 | 12.5 | 11
| - | |
MXXJ-273-11-Sscrew 11 mm
Center of dowel (x): 8
Diameter (D): 20
Drilling depth (h): 12.5
Screw (M): not incl
| 8 | 20 | 12.5 | - | not incl
| |
MXXJ-273-Bc15423 | - | - | - | - | - | |
MXXJ-273-WSw/o screw
Center of dowel (x): 8
Diameter (D): 20
Drilling depth (h): 12.5
Screw (M): not incl
| 8 | 20 | 12.5 | - | not incl
| |
