MXXJ-341 Sleeve nut

Product material: steel
Product finish: zinc plated

SKU: MXXJ-341 Categories: 10 - Connecting fittings, sockets

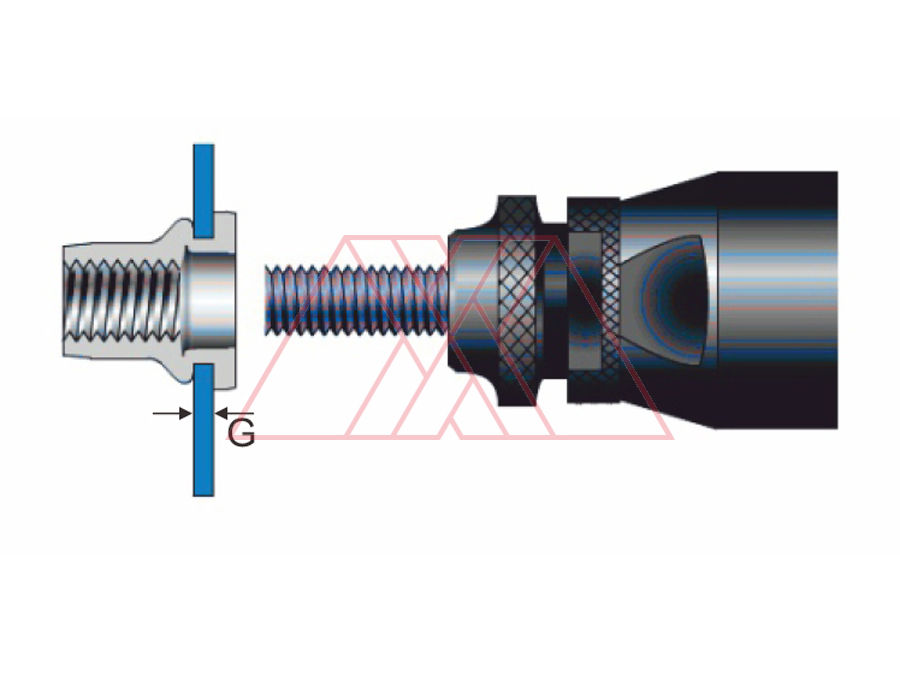

Variations	Gap	Hole diameter (D)	Length (L)	Thread
MXXJ-341-0309 M3 Gap: 0.5-1.5 Hole diameter (D): 5 Length (L): 9 Thread: M3	0.5-1.5	5	9	M3	Inquiry In Inquirylist In Inquirylist
MXXJ-341-0411 M4 Gap: 0.5-2.5 Hole diameter (D): 6 Length (L): 11 Thread: M4	0.5-2.5	6	11	M4	Inquiry In Inquirylist In Inquirylist
MXXJ-341-0513 M5 Gap: 0.5-3.0 Hole diameter (D): 7 Length (L): 13 Thread: M5	0.5-3.0	7	13	M5	Inquiry In Inquirylist In Inquirylist
MXXJ-341-0614 M6*14 Gap: 0.5-3.5 Hole diameter (D): 8 Length (L): 14 Thread: M6	0.5-3.5	8	14	M6	Inquiry In Inquirylist In Inquirylist
MXXJ-341-0817 M810,817L Gap: 0.5-3.5 Hole diameter (D): 10 Length (L): 17 Thread: M8	0.5-3.5	10	17	M8	Inquiry In Inquirylist In Inquirylist
MXXJ-341-1019 M1012,919 Gap: 1.0-5.0 Hole diameter (D): 12 Length (L): 19 Thread: M10	1.0-5.0	12	19	M10	Inquiry In Inquirylist In Inquirylist
MXXJ-341-1021 M1012,921L Gap: 1.0-5.0 Hole diameter (D): 12 Length (L): 21 Thread: M10	1.0-5.0	12	21	M10	Inquiry In Inquirylist In Inquirylist
MXXJ-341-1224 M12 Gap: 1.0-5.0 Hole diameter (D): 14 Length (L): 24 Thread: M12	1.0-5.0	14	24	M12	Inquiry In Inquirylist In Inquirylist
