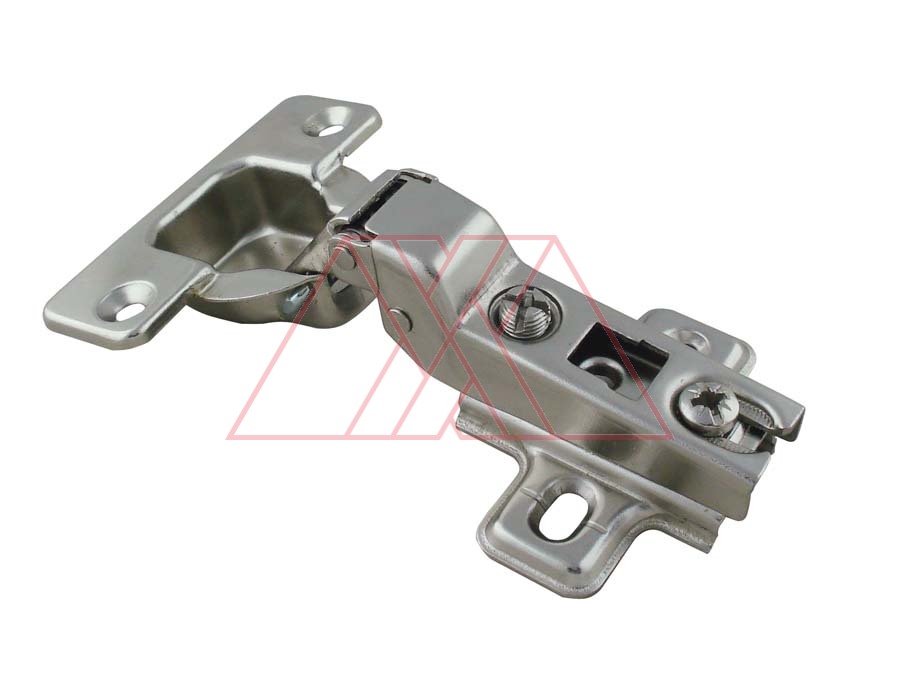

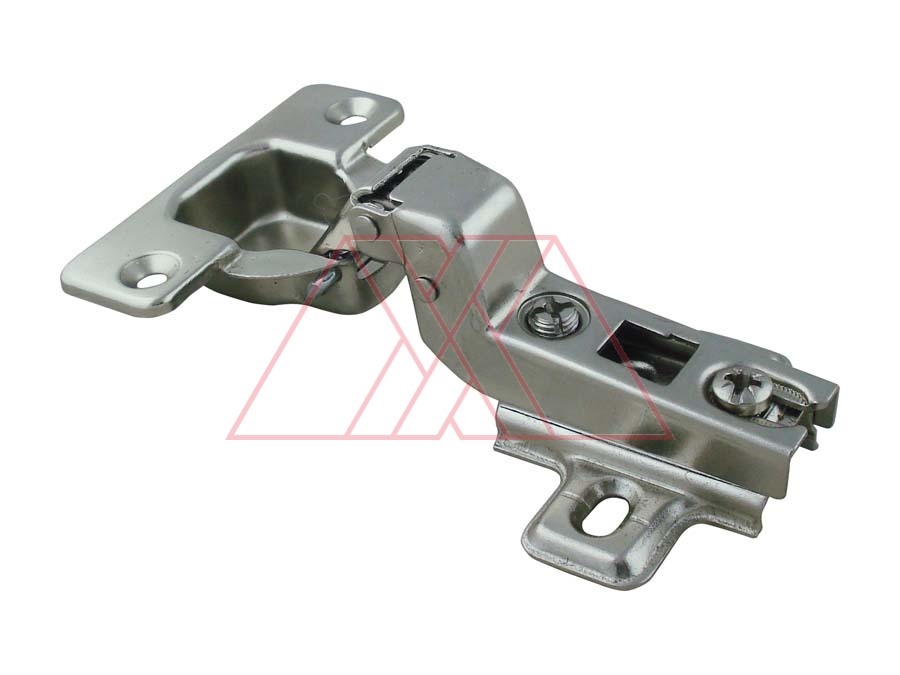

MXXA-001 Concealed hinge, slide-on

Product material: steel
Product finish: nickel plated
SKU: MXXA-001 Categories: ,
Variations

MXXA-001-52-48A2

full/48/H2, 52+/ 2g
Cap depth: 10.5

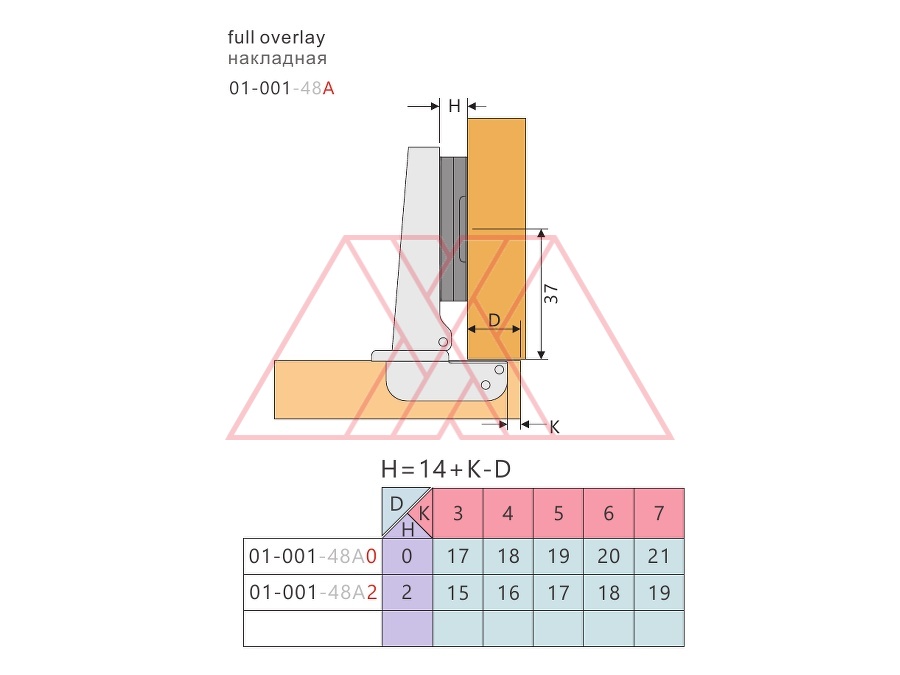

Crank: full overlay
Plate height: H=2

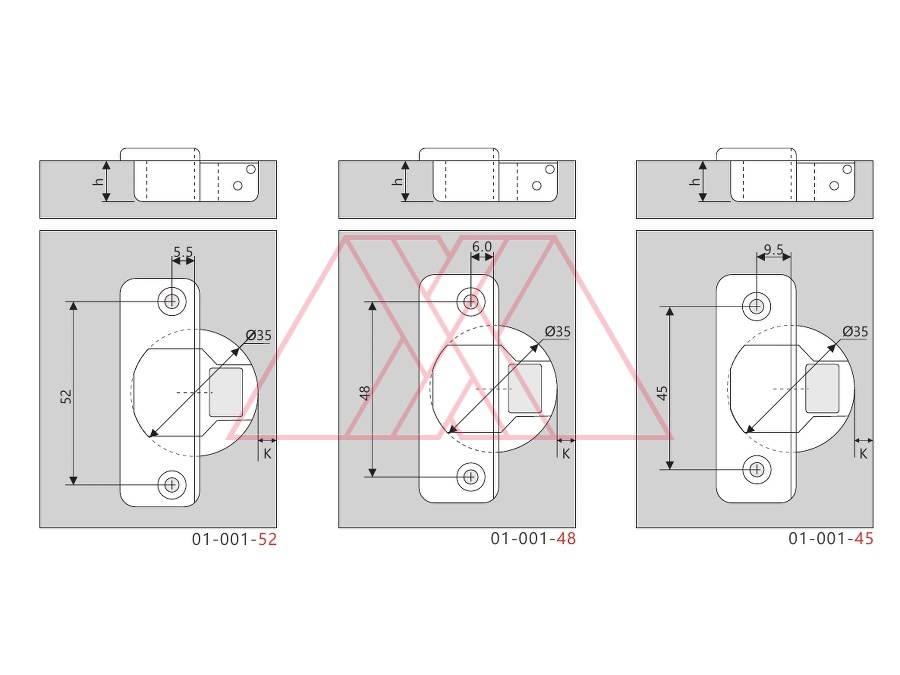

Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

MXXA-001-50-48A2

full /48/H2, 50+/ 2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

MXXA-001-58-48A2

full/48/H2, 58+/ 2g
Cap depth: 11.3
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 57 gr-59

MXXA-001-60-48A2

full/48/H2, 60+/ 2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 59 gr-61

MXXA-001-56-48C0-EU

insert/48/H0, 55+/ 2g

MXXA-001-52-48C0-EUW

insert/48/H0, 52+/ 2g

MXXA-001-60-48A0-EUW

full/48/H0, 60+/ 2g/ screws

MXXA-001-52-48B2-4

half/48/H2, 52+/ 2g, 4holes

MXXA-001-58-48A0-EU

full/48/H0, 58+/ 2g

MXXA-001-52-48C2-EU

insert/48/H2, 52+/ 2g

MXXA-001-58-48B2-EU

half/48/H2, 58+/ 2

MXXA-001-50-48A2-4

full /48/H2, 50+/ 2g,4 holes

MXXA-001-50-48A2-EU

full /48/H2, 50+/ 2g,+Euscrew

MXXA-001-52-48C2-4

insert/48/H2, 52+/ 2g,4 holes

MXXA-001-52-45A0

full /45/H0, 52+/ 2g

MXXA-001-48-48A2

full /48/H2, 48+/ 1g

MXXA-001-60-48C2

insert/48/H2, 60+/ 2
Cap depth: 11.5

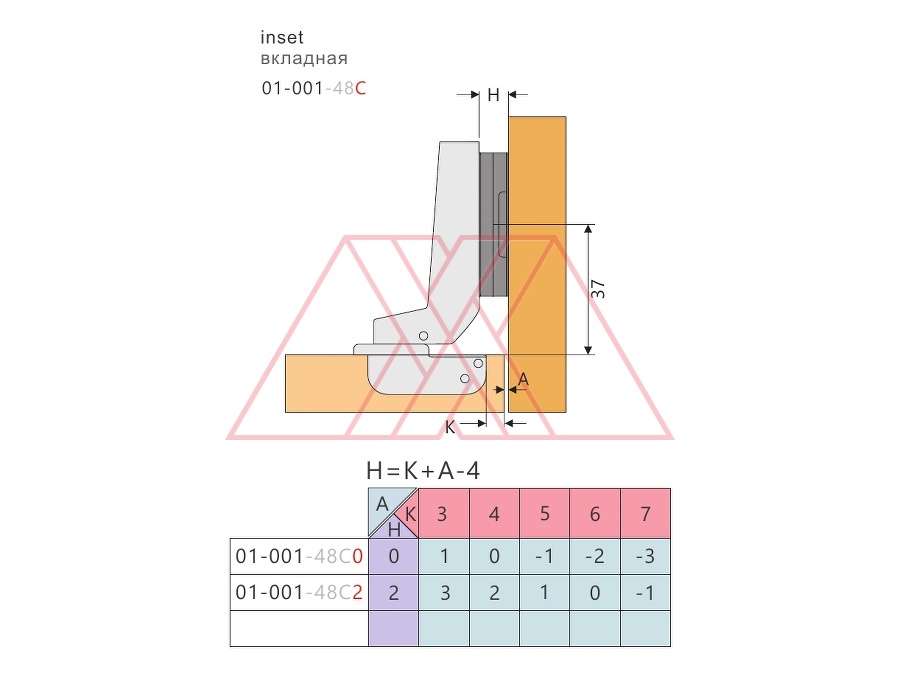

Crank: inset
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 60 gr± 2

MXXA-001-50-48B2

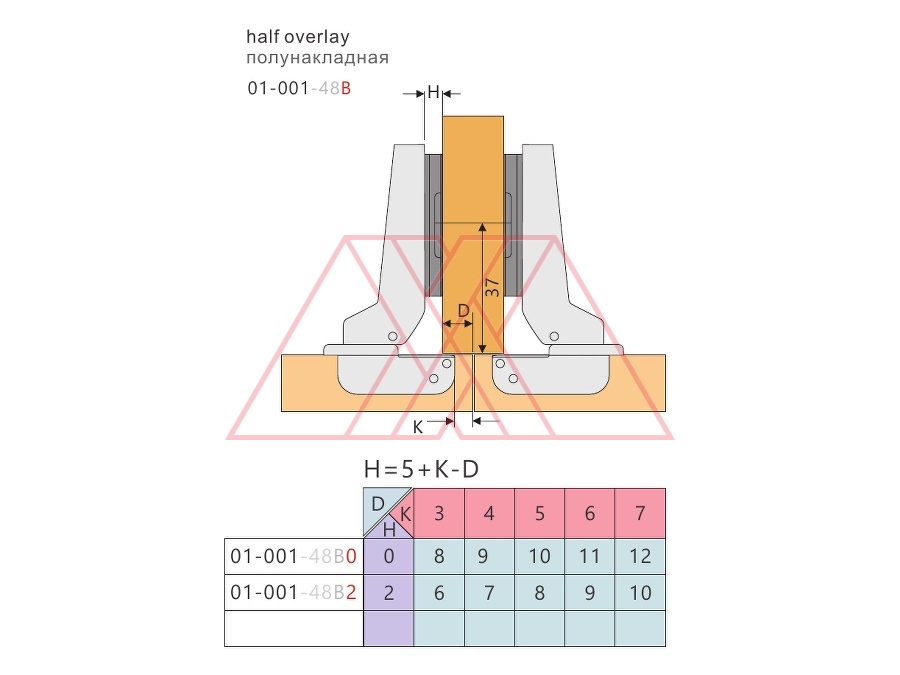

half/48/H2, 50+/ 2g
Cap depth: 10.5
Crank: half overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

MXXA-001-50-48C2

insert/48/H2, 50+/ 2
Cap depth: 10.5
Crank: inset
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

MXXA-001-52-48C2-EUW

insert/48/H2, 52+/ 2g

MXXA-001-50-48C0

insert/48/H0, 50+/ 2

MXXA-001-60-48A2-EU

full/48/H2, 60+/ 2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

MXXA-001-58-48C2-EU

insert/48/H2, 58+/ 2
Cap depth: 11.5
Crank: inset
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 58 gr± 2

MXXA-001-60-48C2-EU

insert/48/H2, 60+/ 2
Cap depth: 11.5
Crank: inset
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

MXXA-001-58-48A2-EU

full/48/H2, 58+/ 2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 58 gr± 2

MXXA-001-60-48B2-EU

half/48/H2, 60+/ 2g
Cap depth: 11.5
Crank: half overlay
Plate height: H=2
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

MXXA-001-50-48A0

full /48/H0, 50+/ 2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: yes
Weight: 50 gr± 2

MXXA-001-52-48B2

half/48/H2, 52+/ 2g
Cap depth: 10.5
Crank: half overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

MXXA-001-52-48C2

insert/48/H2, 52+/ 2g
Cap depth: 10.5
Crank: inset
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

MXXA-001-52-48A0

full/48/H0, 52+/ 2g
Cap depth: 10.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: yes
Weight: 52 gr± 2

MXXA-001-50-48B0

half/48/H0, 50+/ 2g

MXXA-001-60-48A0

full/52/H0, 60+/ 2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=0
Plate type: for chipboard screws
Spring: yes
Weight: 60 gr± 2

MXXA-001-60-48A0-EU

full/48/H0, 60+/ 2g
Cap depth: 11.5
Crank: full overlay
Plate height: H=0
Plate type: for euroscrews
Spring: yes
Weight: 60 gr± 2

MXXA-001-52-48A2-4

full/48/H2, 52+/ 2g,4 holes
Cap depth: 10.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws, 4 holesSpring
Weight: 52 gr± 2

MXXA-001-58-48A2-4

full/48/H2, 58+/ 2g/4holes
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws, 4 holesSpring
Weight: 58 gr± 2

MXXA-001-60-48A2-4

full/48/H2, 60+/ 2g/4holes
Cap depth: 11.5
Crank: full overlay
Plate height: H=2
Plate type: for chipboard screws, 4 holesSpring
Weight: 60 gr± 2

MXXA-001-60-48B0

half/48/H0, 60+/ 2g

MXXA-001-60-48B2

half/48/H2, 60+/ 2g
Cap depth: 11.5
Crank: half overlay
Plate height: H=2
Plate type: for chipboard screws
Spring: yes
Weight: 60 gr± 2

MXXA-001-60-48C0

insert/48/H0, 60+/ 2
