MXXA-100 | Hinge 26mm, slide-on MXXA-100
MXXA-100-B | Hinge 26mm, slide-on MXXA-100-B
MXXA-100-C | Hinge 26mm, slide-on MXXA-100-C
MXXA-100-q | Hinge 26mm, slide-on MXXA-100-q

MXXA-100 Hinge 26mm, slide-on

Product material: steel
Product finish: nickel plated
SKU: MXXA-100 Categories: ,

Featured

Variations

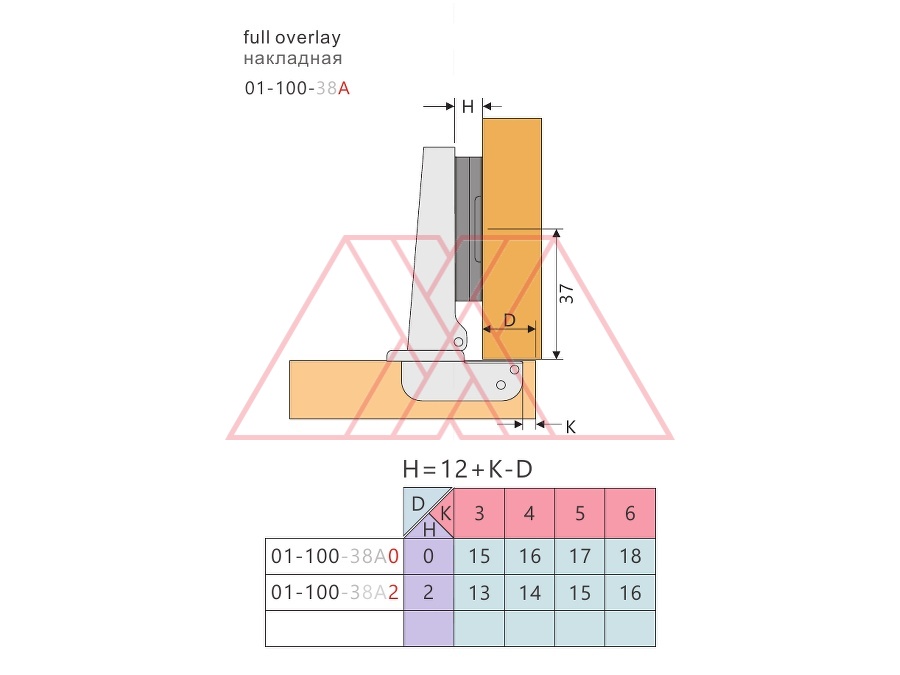

MXXA-100-38A0

full overlay/38/H0
Crank: full overlay

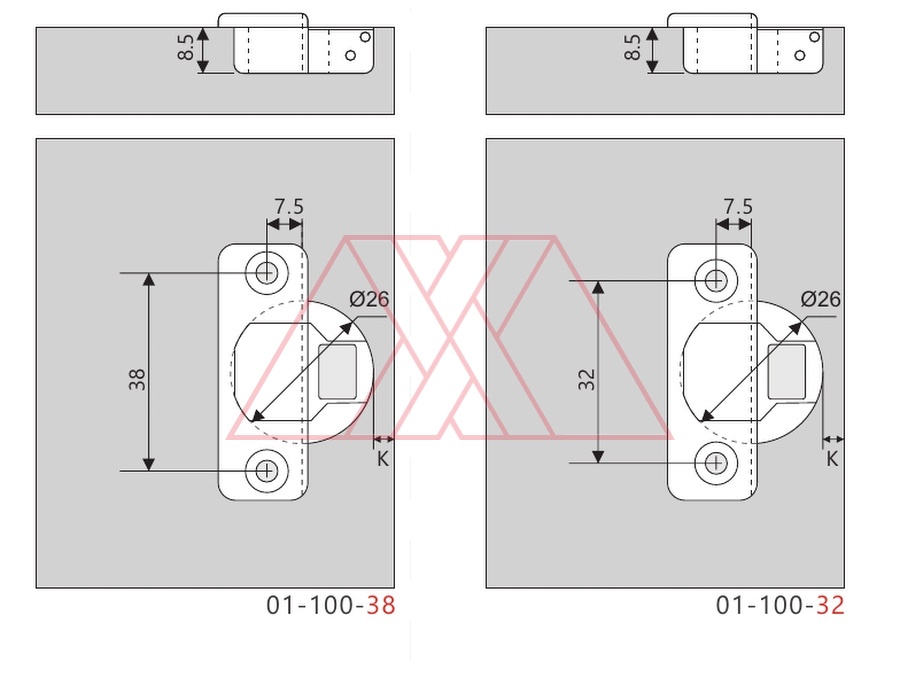

Holes: 38
Plate height: H=0
Weight: 33 gr

MXXA-100-38B0-x-4

half overlay/38/H0

MXXA-100-38C2

insert/38/H2

MXXA-100-38C0-x-4

insert/38/H0

MXXA-100-38C0-x

insert/38/H0

MXXA-100-38C0-EU

insert/38/H0

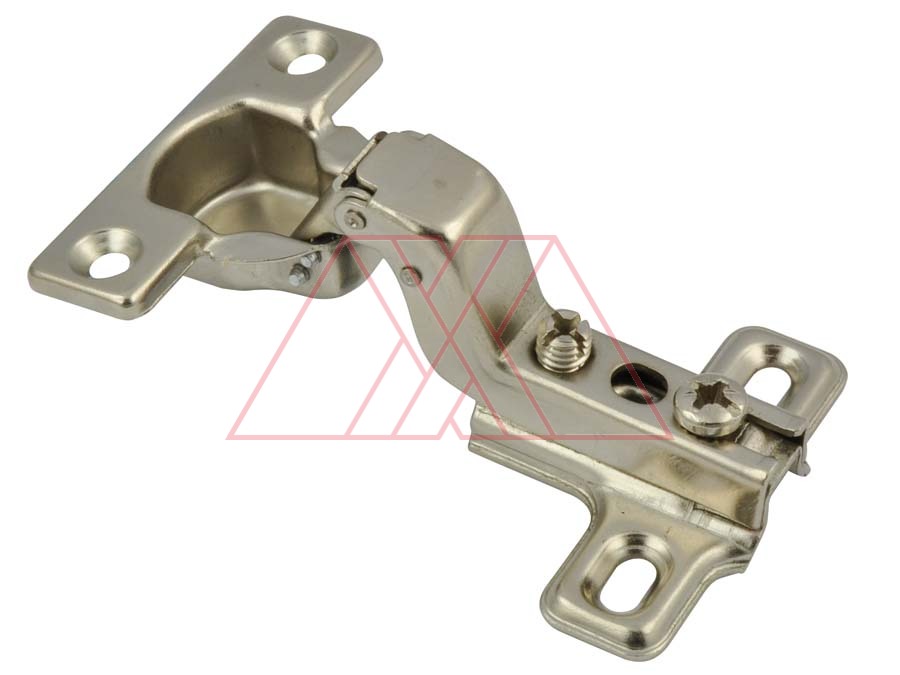

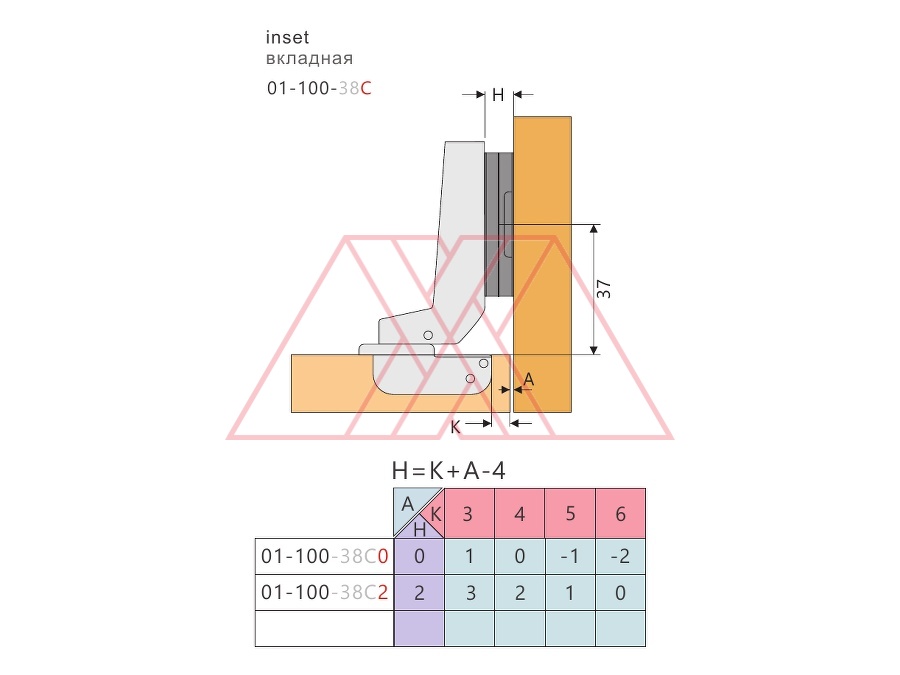

MXXA-100-38C0

insert/38/H0
Crank: inset
Holes: 38
Plate height: H=0

MXXA-100-38B2

half overlay/38/H2

MXXA-100-38B0-x

half overlay/38/H0

MXXA-100-38A0-4

full overlay/38/H0, 4 holes

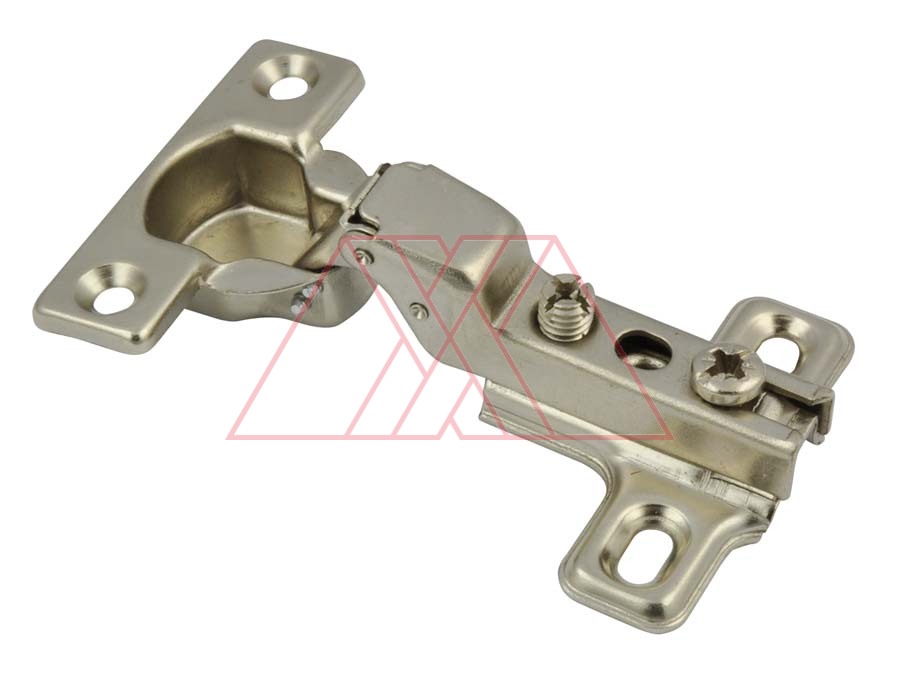

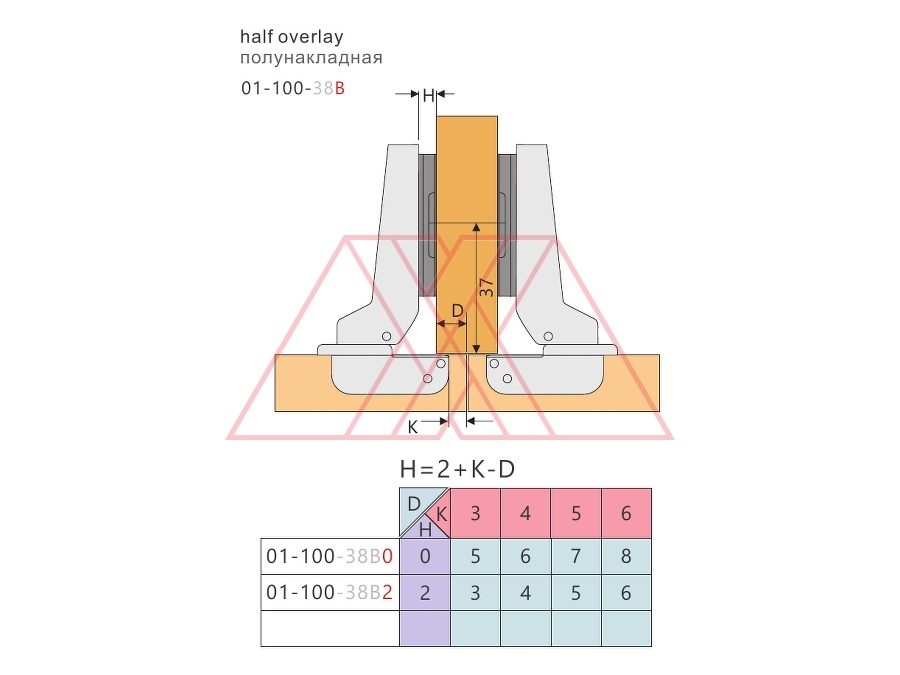

MXXA-100-38B0

half overlay/38/H0
Crank: half overlay
Holes: 38
Plate height: H=0

MXXA-100-38A2-EU

full overlay/38/H2

MXXA-100-38A2

full overlay/38/H2

MXXA-100-38A0-x-4

full overlay/38/H0, 4 holes

MXXA-100-38A0-x

full overlay/38/H0

MXXA-100-38A0-EU-x

full overlay/38/H0

MXXA-100-38A0-EU

full overlay/38/H0

MXXA-100-38C2-EU-x

insert/38/H2
