MXXA-060 Soft closing hinge

SKU: MXXA-060 Categories: ,
Variations

MXXA-060-56-48A-S-2

full/48/short piston/2h/56gr

MXXA-060-80-48A-L-4

full/48/long piston/4h

MXXA-060-90-48C-2

insert/48/2h/90gr

MXXA-060-90-48B-2

h.overlay/48/2h/90gr

MXXA-060-90-48A-4

full/48/2h/90 92gr

MXXA-060-90-48A-2

full/48/2h/90 92gr

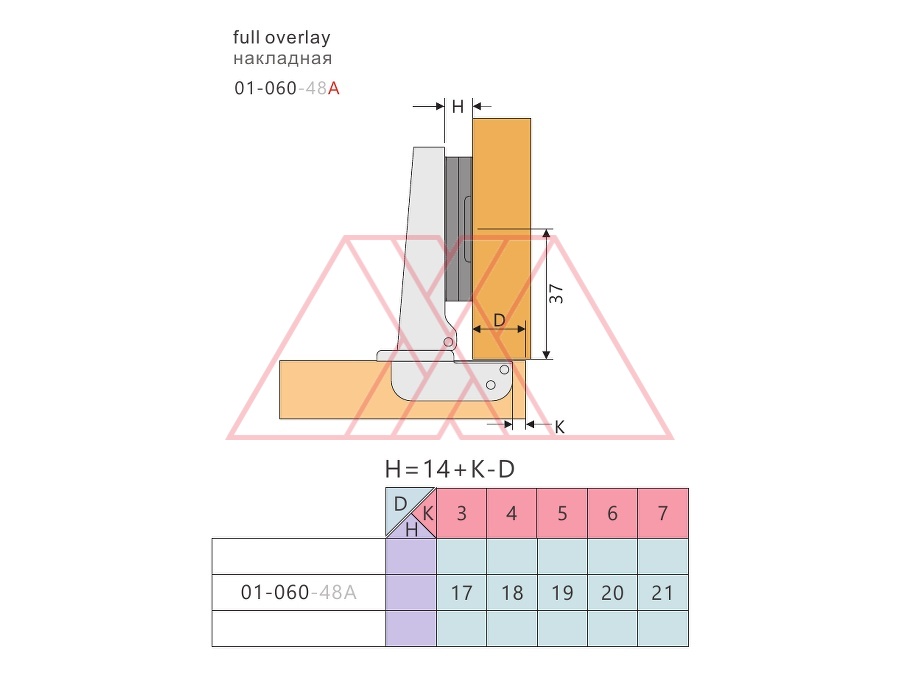

Crank: full overlay
Holes: 48
Plate type: 2 holes
Weight: 90 gr-92

MXXA-060-82-48A-2

full/48/2h/82gr

MXXA-060-80-48A-S-4T

full/48/short piston/4h/80,4holes,trapezia

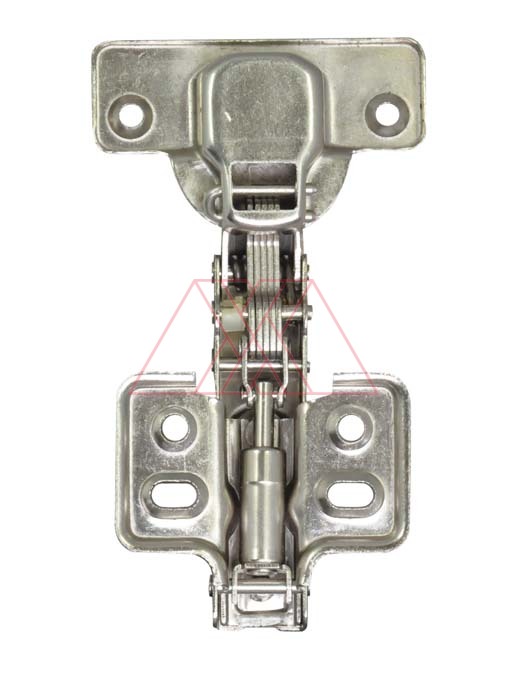

MXXA-060-80-48A-S-4

full/48/short piston/4h/80 82gr
Crank: full overlay
Holes: 48
Plate type: 4 holes
Weight: 80 gr-82
Openning angle: 105 °

MXXA-060-78-48C-L-4

insert/48/long piston/4h

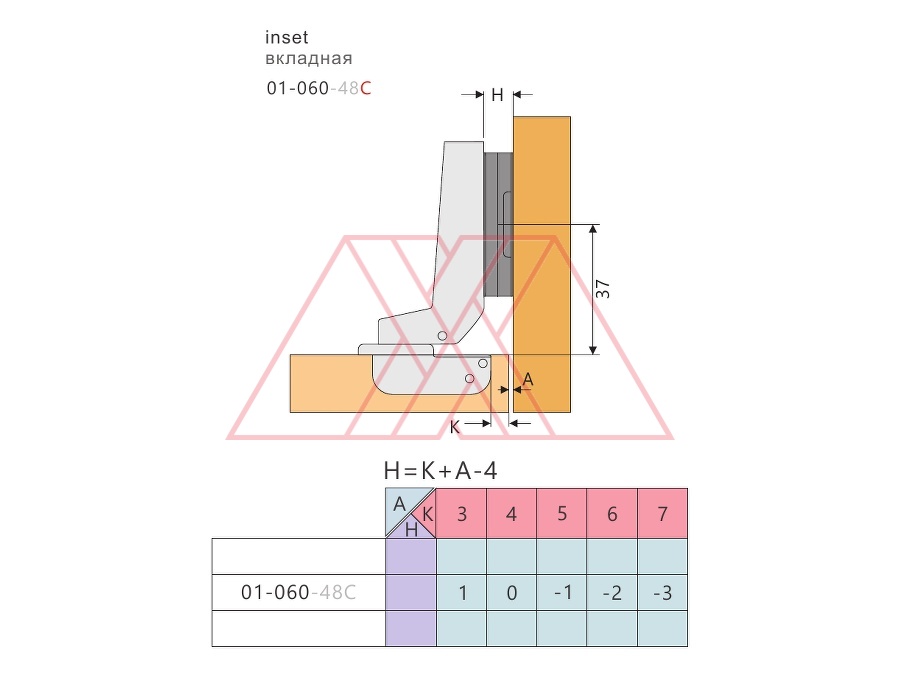

Crank: inset
Holes: 48
Plate type: 4 holes
Weight: 76 gr-78

MXXA-060-59-48A-4-SS

full/48/4h/59gr, stainless

MXXA-060-78--48B-L-4

half/48/long piston/4h

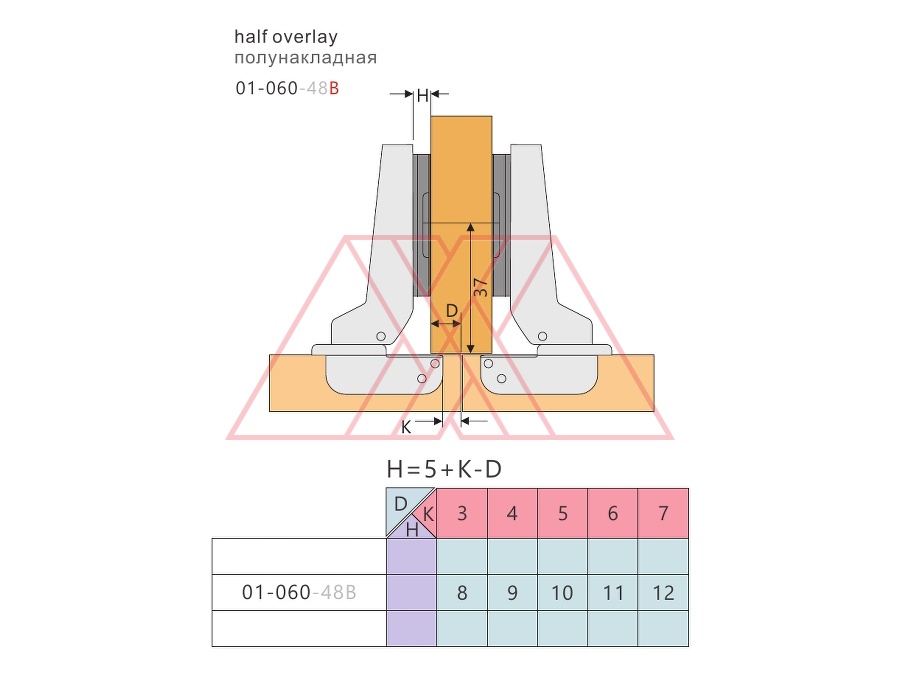

Crank: half overlay
Holes: 48
Plate type: 4 holes
Weight: 76 gr-78

MXXA-060-78-48A-L-4

full/48/long piston/4h
Crank: full overlay
Holes: 48
Plate type: 4 holes
Weight: 76 gr-78

MXXA-060-78-48A-L-2

full/48/long piston/2h

MXXA-060-75-48A-S-4

full/48/4h/75gr

MXXA-060-72-48A-S-4

full/48/short piston/4h/72gr

MXXA-060-72-48A-S-2

full/48/short piston/2h/72gr

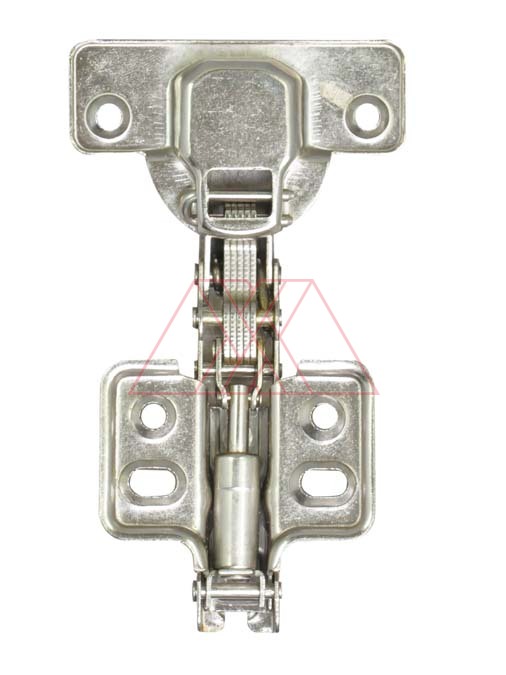

MXXA-060-70-48A-S-4

full/48/short piston/4h/70+/ 1gr

MXXA-060-68-48A-S-4

full/48/short piston/4h/68gr

MXXA-060-97-48A-4

full/48/4h/97gr
