MXXI-105 Roller system (asymmetric)

Variations

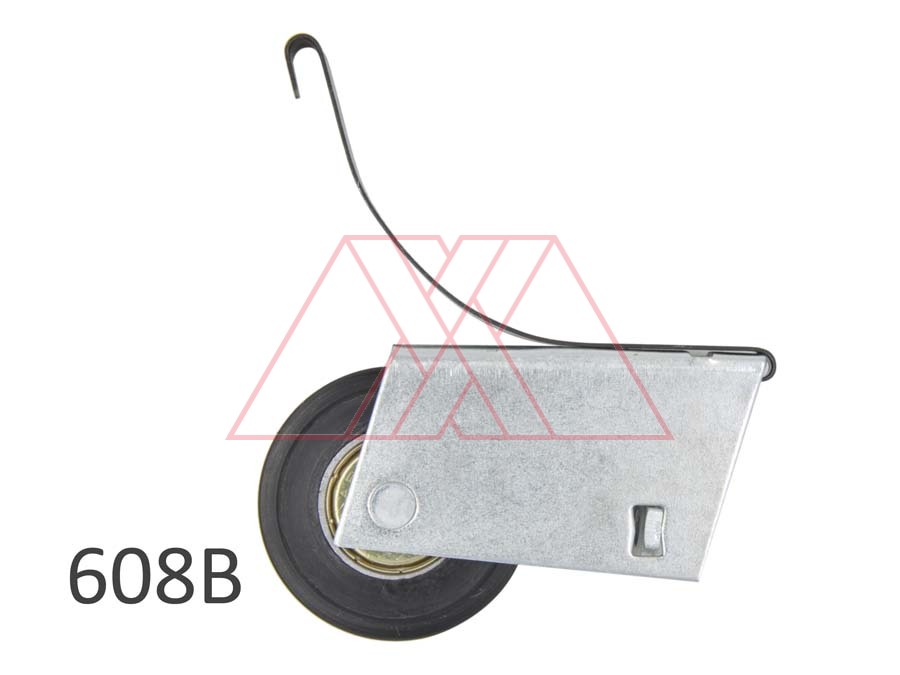

MXXI-105-608B06375B

608B/1.0/1.4/6/37.5B
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

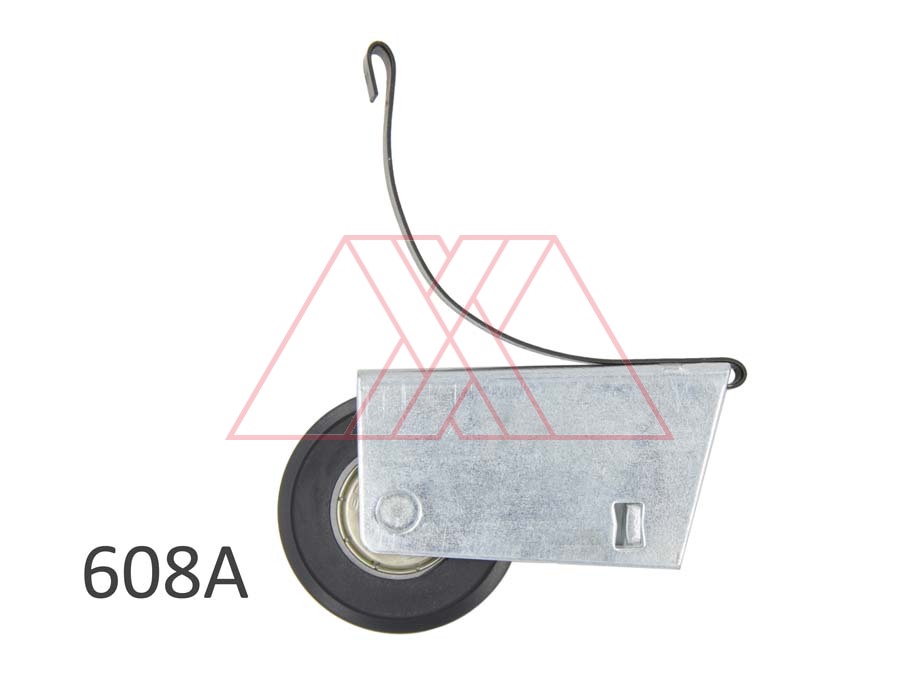

MXXI-105-608A05385A

608A/1.0/1.4/5/38.5A
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 38.5 ±0,2

MXXI-105-608A26375B

608A/1.2/1.4/6/37.5B
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-629G2639C

629G/1.2/1.4/6/38.9C

MXXI-105-629A26375CH

629G/1.2/1.4/6/38.9C, harder
Down roller: thickness: 1.2
Screw (M): 6
Screw type: hardened
Upper roller: width: 38.9 ±0,2

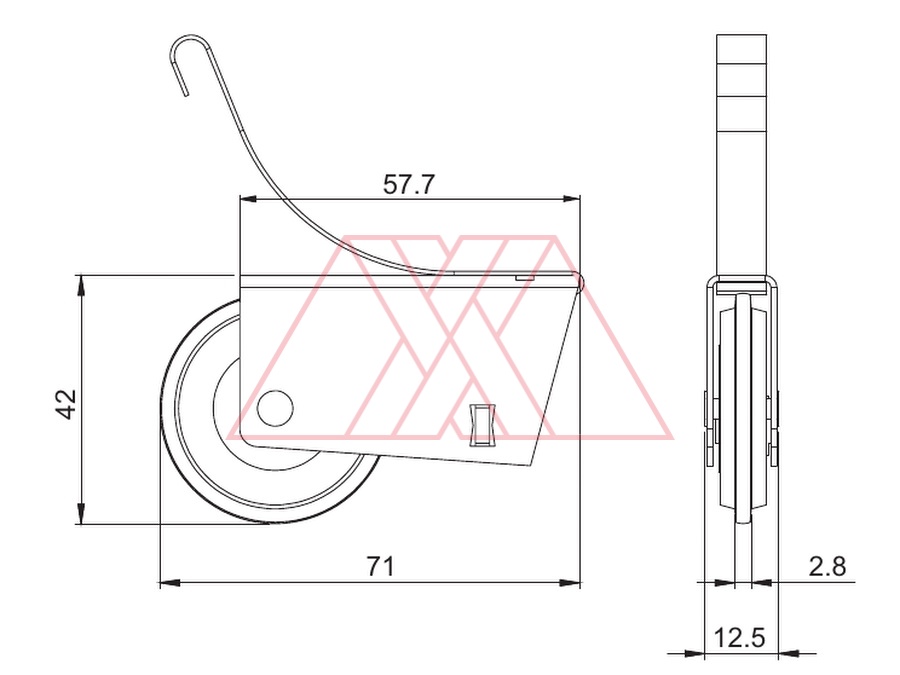

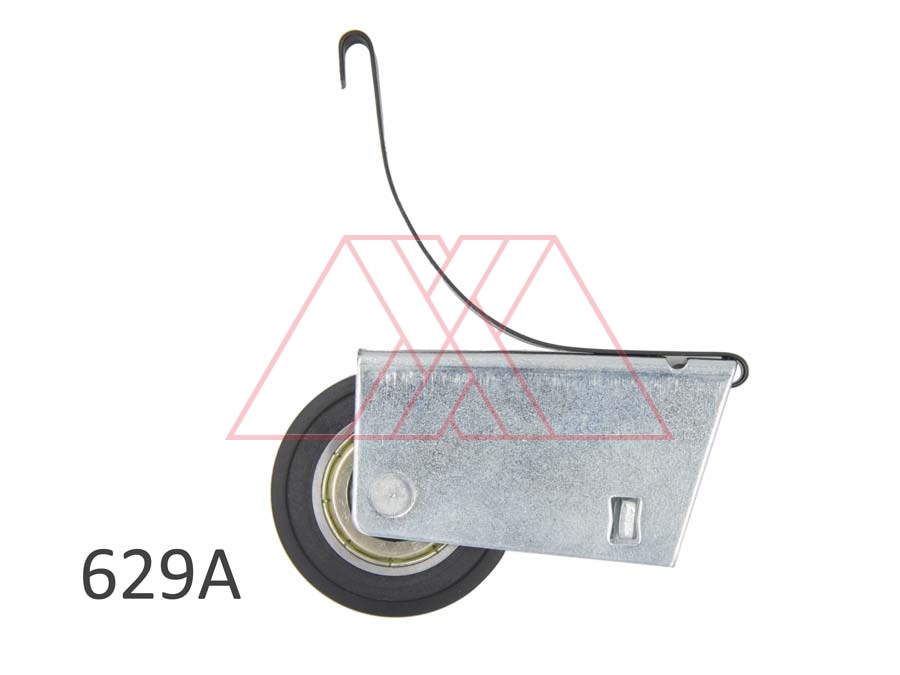

MXXI-105-629A26375B

629A/1.2/1.4/6/37.5B
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-629A06375B

629A/1.0/1.4/6/37.5B
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608G0x39C

608G/1.0/1.4//38.9C
Down roller: thickness: 1.0
Upper roller: width: 38.9 ±0,2

MXXI-105-608G0539C

608G/1.0/1.4/5/38.9C

MXXI-105-608B26375BK

608B/1.2/1.4/6/37.5B; 3 holes
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2
Holes: 3

MXXI-105-608B26375B

608B/1.2/1.4/6/37.5B
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608B06H375B-4

608B/1.0/1.4/6/37.5B, harder

MXXI-105-608A26375C

608A/1.2/1.4/6/37.5C
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608A26375A

608A/1.2/1.4/6/37.5A
Down roller: thickness: 1.2
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608A05385B

608A/1.0/1.4/5/38.5B
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 38.5 ±0,2

MXXI-105-608A2539G

608A/1.2/1.4/6/39G

MXXI-105-608A06H39G

608A/1.0/1.4/6/39G, harder
Down roller: thickness: 1.0
Screw (M): 6
Screw type: hardened
Upper roller: width: 39 ±0,2

MXXI-105-608A06H375G

608A/1.0/1.4/6/37.5G, harder
Down roller: thickness: 1.0
Screw (M): 6
Screw type: hardened
Upper roller: width: 37.5 ±0,2

MXXI-105-608A06H375A-4

608A/1.0/1.4/6/37.5A, harder

MXXI-105-608A0639G

608A/1.0/1.4/6/39G
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 39 ±0,2

MXXI-105-608A06385B

608A/1.0/1.4/6/38.5B
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 38.5 ±0,2

MXXI-105-608A06385A

608A/1.0/1.4/6/38.5A
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 38.5 ±0,2

MXXI-105-608A06375G

608A/1.0/1.4/6/37.5G
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608A06375B

608A/1.0/1.4/6/37.5B
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608A06375A

608A/1.0/1.4/6/37.5A
Down roller: thickness: 1.0
Screw (M): 6
Screw type: standard
Upper roller: width: 37.5 ±0,2

MXXI-105-608A05H39G

608A/1.0/1.4/5/39G, harder
Down roller: thickness: 1.0
Screw (M): 5
Screw type: hardened
Upper roller: width: 39 ±0,2

MXXI-105-608A0539G

608A/1.0/1.4/5/39G
Down roller: thickness: 1.0
Screw (M): 5
Screw type: standard
Upper roller: width: 39 ±0,2

MXXI-105-629G2x39C

629G/1.2/1.4//38.9C
Down roller: thickness: 1.2
Screw type: standard
Upper roller: width: 38.9 ±0,2
