MXXJ-189 Double dowel without ring

Product material: steel
Product finish: zinc plated
SKU: MXXJ-189 Categories: ,
Variations

MXXJ-189-48

L=86мм, 34+18+34
Board: 16
Cam distance (A): 24
Dowel length (L): 48

MXXJ-189-64

L=64mm, 24+16+24
Board: 16
Cam distance (A): 24
Dowel length (L): 64

MXXJ-189-68

L=68mm, 34+0+34
Board: 16
Cam distance (A): 34
Dowel length (L): 68

MXXJ-189-74

L=74mm, 34+16+24
Board: 16
Cam distance (A): 34/24
Dowel length (L): 74

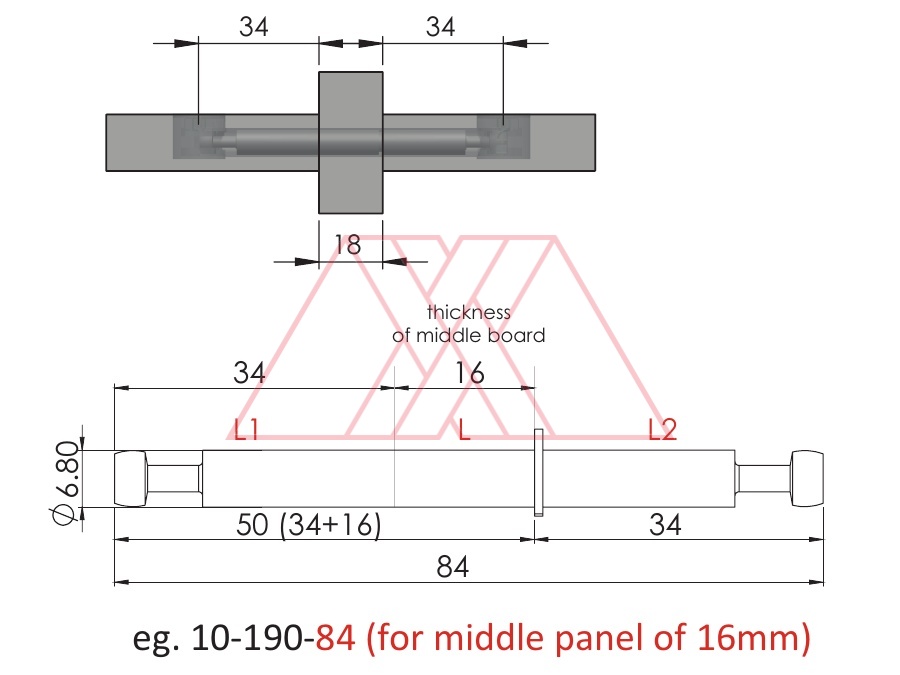

MXXJ-189-84

L=84mm, 34+16+34
Board: 16
Cam distance (A): 34
Dowel length (L): 84

MXXJ-189-86

L=86мм, 34+18+34
