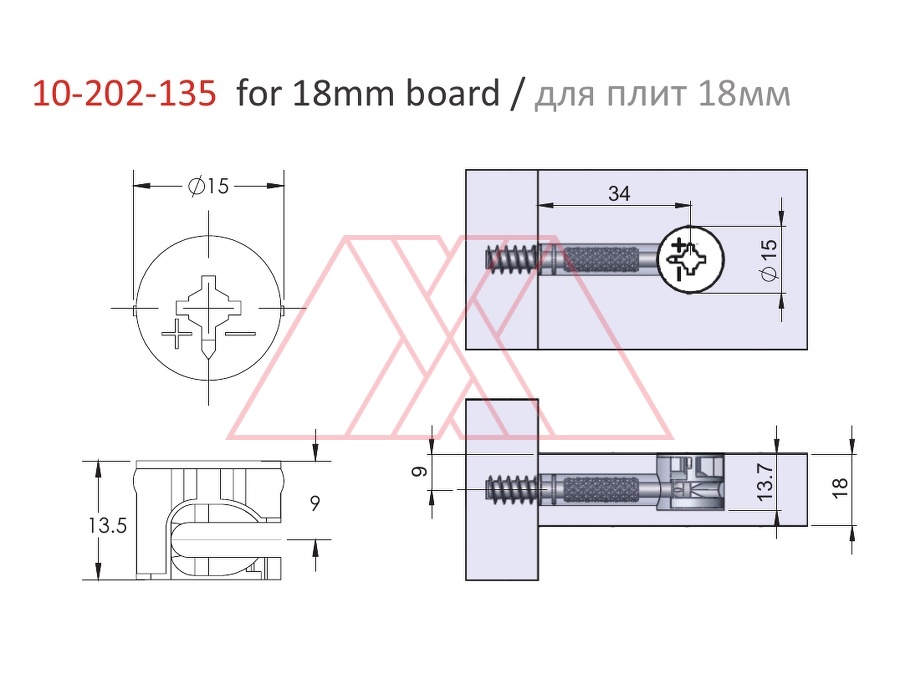

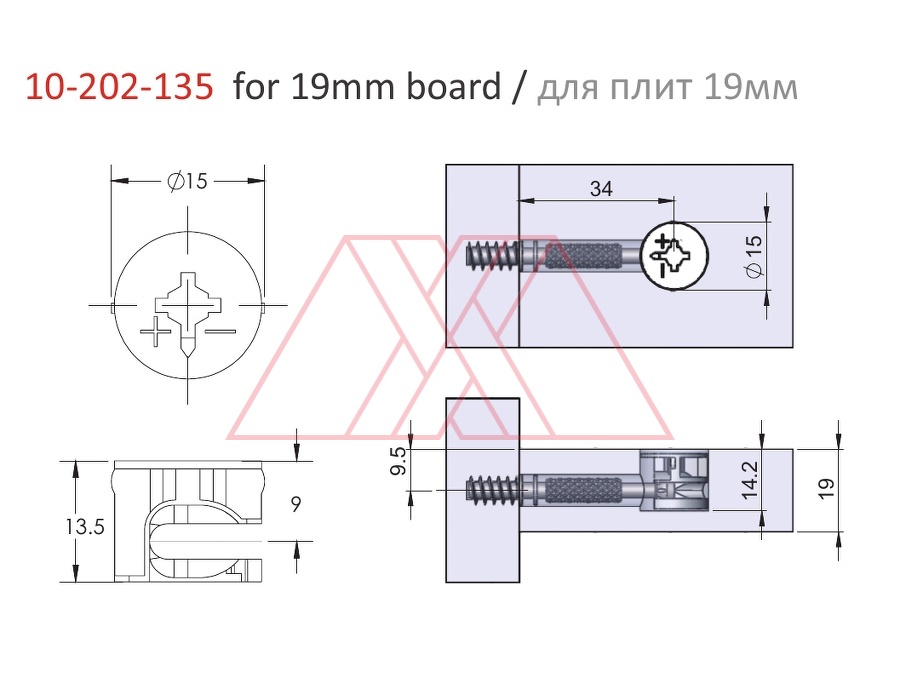

MXXJ-202 Eccentric cam, D15

Product material: zinc alloy
Product finish: zinc plated

SKU: MXXJ-202 Categories: 10 - Connecting fittings, eccentric cams

Variations	Board	Center of dowel (x)	Diameter (D)	Drilling depth (h)	Height (h)	Torque	Weight
MXXJ-202-110 h=11 Board: 13 Center of dowel (x): 6.5 Diameter (D): 15 Drilling depth (h): 11.5 Height (h): 11	13	6.5	15	11.5	11	-	-	Inquiry In Inquirylist In Inquirylist
MXXJ-202-112-x h=11.2	-	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
MXXJ-202-120 h=12 Board: 16/18 Center of dowel (x): 8 Diameter (D): 15 Drilling depth (h): 12.5/13.4 Height (h): 12 Torque: 7.0-8.0 N/m Weight: 3.7 gr	16/18	8	15	12.5/13.4	12	7.0-8.0 N/m	3.7 gr	Inquiry In Inquirylist In Inquirylist
